Precision Manufacturing: Insulated Bearings for Machine Tool Motor
Critical to industrial output, machine tools require peak performance. TFL specializes in machine tool motor insulating bearings, delivering effective electrical protection. This significantly enhances reliability and extends service life, ensuring stable and efficient production.
The Unique Challenges of Machine Tool
We offer a variety of electric insulating bearings to choose from. The standard bearing classifications include deep groove ball bearings, cylindrical roller bearings, and tapered roller bearings. We have the standard bearing classifications shown below in stock and can deliver quickly.
Challenge 1: Electrical Erosion

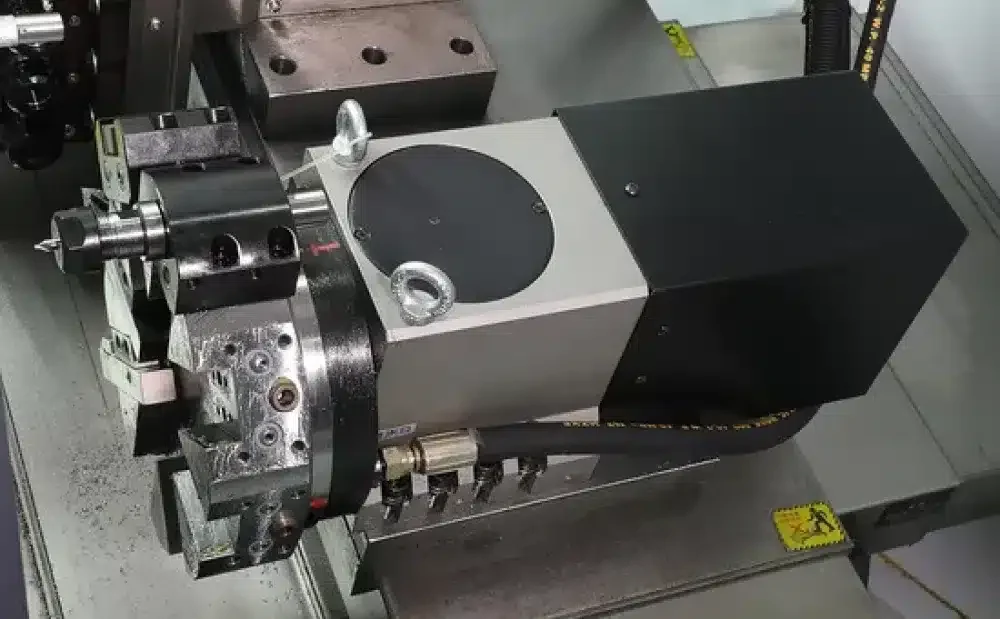

Problem Description: VFD-driven machine tool motors generate high-frequency pulse voltages, inducing shaft currents. These currents flow through the motor bearings’ raceways and rolling elements, damaging surfaces and grease, leading to machine tool motor failure and downtime.
TFL's countermeasures
- Electrically Insulated Bearings: Feature a special aluminum oxide coating to effectively block current.
- Plasma Spray Coating: Ensures uniform, strong adhesion and stable insulation performance.
- Breakdown Voltage up to 3000V DC: Handles even the most demanding VFD applications.
- Dimensionally Interchangeable: Directly replaces standard motor bearings without design modifications.
Challenge 2: High Speed / Precision

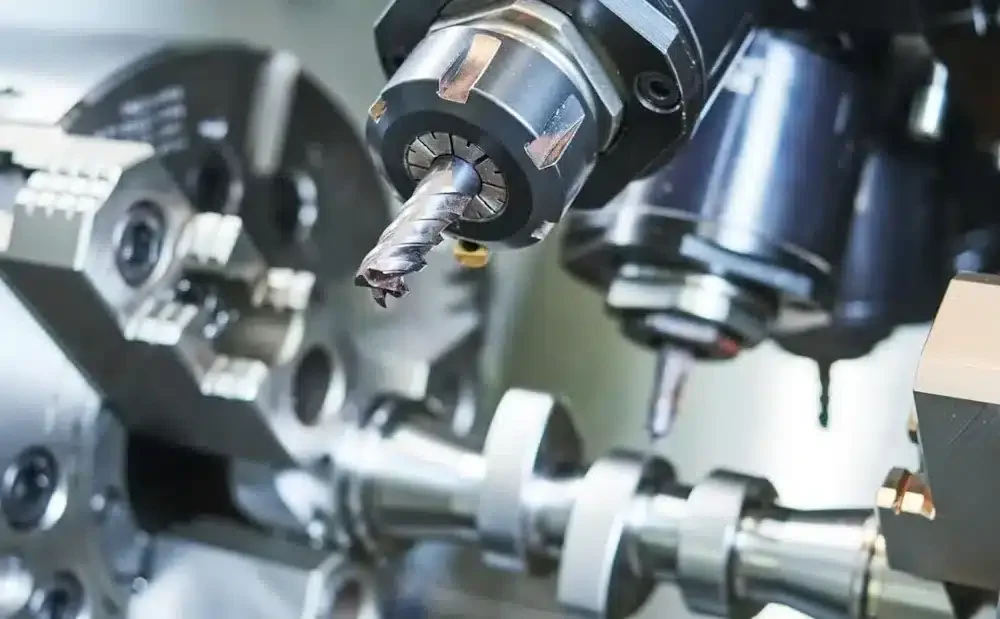

Problem Description: Precision is a core indicator for machine tool motors, directly impacting processing quality. Machine tool motor bearings must maintain high precision at high speeds; otherwise, overall machining accuracy and yield rate will decrease.
TFL's countermeasures
- Angular Contact Motor Bearings: Optimized design supports higher speeds and rigidity.
- Multiple Precision Grades: Meets stringent machining accuracy requirements from P5 to P2.
Challenge 3: Thermal Deformation
Problem Description: Under high-speed, high-load operation, machine tool motors generate significant heat. This causes changes in motor bearing clearance and precision, accelerating fatigue and reducing bearing life.
TFL's countermeasures
- SUJ2 High-Carbon Chromium Bearing Steel: Allows long-term operating temperatures of 250-300℃.
- Polyurea Grease: Maintains excellent lubrication performance even at extreme temperatures.
- Optimized Internal Design and Clearance: Effectively manages thermal expansion
Challenge 4: Contamination

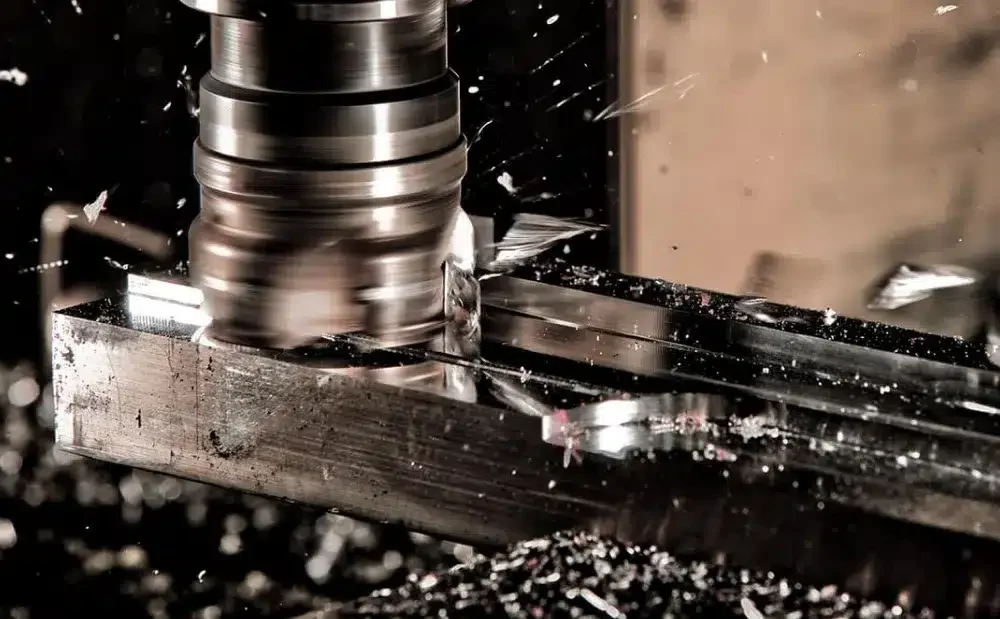

Problem Description: Machine tool motor bearings are often exposed to contaminants like cutting fluids, metal chips, dust, and abrasive particles. Ingress of these contaminants degrades lubricant, accelerates wear on rolling elements and raceways, significantly increasing maintenance costs.
TFL's countermeasures
Recommended products: Machine Tool series
We integrate patented technology, stringent quality control, and supply chain efficiency to deliver unmatched reliability and value to our partners.
More Than Standard Products: Flexible Custom Solutions
Whether you require the development of special-sized bearings or need insulation coating services for your existing ones, our technical team provides comprehensive support from design to flexible production, responding quickly to your unique needs.
Typical Applications
We provide proven insulated bearing solutions that ensure both complete electrical protection and optimal mechanical performance, enhancing the longevity and reliability of your machinery in any industrial environment.
Bearings For Railway Transportation
TFL’s insulated bearings, with robust aluminum oxide ceramic coatings, are vital for railway traction motors. They establish a powerful dielectric barrier, effectively blocking damaging shaft currents from Variable Frequency Drives (VFDs), thus preventing electrical erosion and premature equipment failure.
By safeguarding these critical components, our bearings significantly enhance the safety, reliability, and uptime of modern railway systems. As a trusted supplier, we provide proven solutions designed for the rigorous demands of daily rail operation.
Hot Market
- Special Insulated Bearings for Traction Motors
- High Resistance to Shock & Vibration
- Hybrid Ceramic Bearing Options
Bearings For Wind Power
Wind power is cornerstone of sustainable energy vital for combating climate change and the one solution to energy
issues such as the prevention of global warming.
Given the substantial maintenance costs and extended downtime associated with these large, eco-friendly systems, our bearings offer indispensable protection. By creating a robust dielectric barrier, they ensure the stable, reliable, and continuous operation of wind turbines, significantly reducing maintenance interventions and supporting a greener, more efficient energy future.
Hot Market
- Main Shaft & Generator Bearings
- High-Reliability & Long-Life Design
- Coating for Harsh Environments
Bearings For Industrial Pumps & Fans
For VFD-driven industrial pumps and fans where stray currents threaten reliability, our insulated bearings are the proven solution. They feature a specialized dielectric coating that safely interrupts the electrical path, preventing catastrophic bearing failure and costly downtime. This makes our bearings a fundamental component for ensuring the safe, continuous operation of your most vital systems.
Hot Market
- Preventing Premature Failure from Shaft Currents
- Reducing Maintenance Frequency & Costs
- Standard Dimensions for Easy Replacement
Bearings For Mining Industry
The mining industry is foundational, providing essential raw materials that underpin modern infrastructure and technology. Operations involve colossal, heavy-duty machinery in harsh, often remote environments, demanding exceptional safety standards and continuous production. These demanding conditions, coupled with the high cost and risk of maintenance, make equipment reliability paramount.
TFL’s insulated bearings offer a critical safeguard, specifically engineered for the mining sector. They create a robust dielectric barrier, effectively blocking damaging shaft currents generated by Variable Frequency Drives (VFDs), which otherwise lead to electrical erosion and premature equipment failure. This ensures the stable and uninterrupted operation of vital mining equipment, significantly reducing costly downtime, enhancing worker safety, and sustaining productivity in the most challenging conditions.
Hot Market
- For Excavator, Crusher & Conveyor Motors
- Design for High Contamination & Shock Loads
- Enhancing Equipment Reliability in Harsh Environments
Bearings For Oil & Gas Industry
We utilize a robust aluminum oxide coating to provide superior electrical insulation in our bearings. This is vital for Oil & Gas operations, where stray currents from VFDs can cause sparks and lead to catastrophic failure in potentially explosive atmospheres. As a dedicated partner, we deliver insulated bearings that enhance equipment safety and maximize uptime for your critical machinery.
Hot Market
- For Pumps, Compressors & Drilling Motors
- Ensuring Continuous Operation of Mission-Critical Equipment
- Optional Coatings for Corrosive & High-Temp Environments
Bearings For Industrial Motor
Industrial motors are the undisputed heart of productivity, driving essential processes across nearly every sector. However, modern Variable Frequency Drives (VFDs) generate damaging shaft currents that threaten motor longevity and reliability.
TFL’s insulated bearings offer critical protection, establishing a robust dielectric barrier. This prevents electrical erosion and premature failure, ensuring consistent, long-term performance of these vital machines. By safeguarding the ‘heart’ of your operations, our bearings significantly reduce unplanned downtime, cut maintenance costs, and enhance operational efficiency and motor lifespan.
Hot Market
- Insulation Protection for VFD Motors
- Insulated Deep Groove Ball Bearings
- Insulated Cylindrical Roller Bearings
General FAQ
Find quick answers to common inquiries about our technology, product compatibility, and ordering process.
What are the insulation specifications of TFL bearings?
Our robust insulating layer, with a thickness ranging from 100 to 500 µm, reliably withstands breakdown voltages between 1000V and 3000V. This advanced insulation also provides an exceptional electrical resistance of 50 MΩ to 200 MΩ, ensuring effective defense against damaging shaft currents.
For more detailed specifications or any inquiries, contact us any time.
How can I apply for samples for preliminary testing?
What is the lead time for standard models?
As a leading supplier of electrically insulated bearings, we maintain an extensive inventory of standard models. The majority of orders are dispatched within 10 business days or less. Once shipped, you will receive tracking information to monitor your delivery until successful receipt.
Can your products serve as a direct replacement for the SKF VL0241 series?
Our insulated bearings are meticulously engineered for a seamless, direct replacement with the SKF VL0241 series. Both in terms of insulation performance and dimensional accuracy, our products are fully compliant and equivalent to SKF INSOCOAT bearings. This enables you to achieve identical performance and reliability at a significantly lower procurement cost.
Should you have specific product requirements, please send us your inquiry. We will promptly provide detailed product data and a competitive quotation.
