TFL Top Drive Insulated Bearings: Engineered for Extreme Drilling

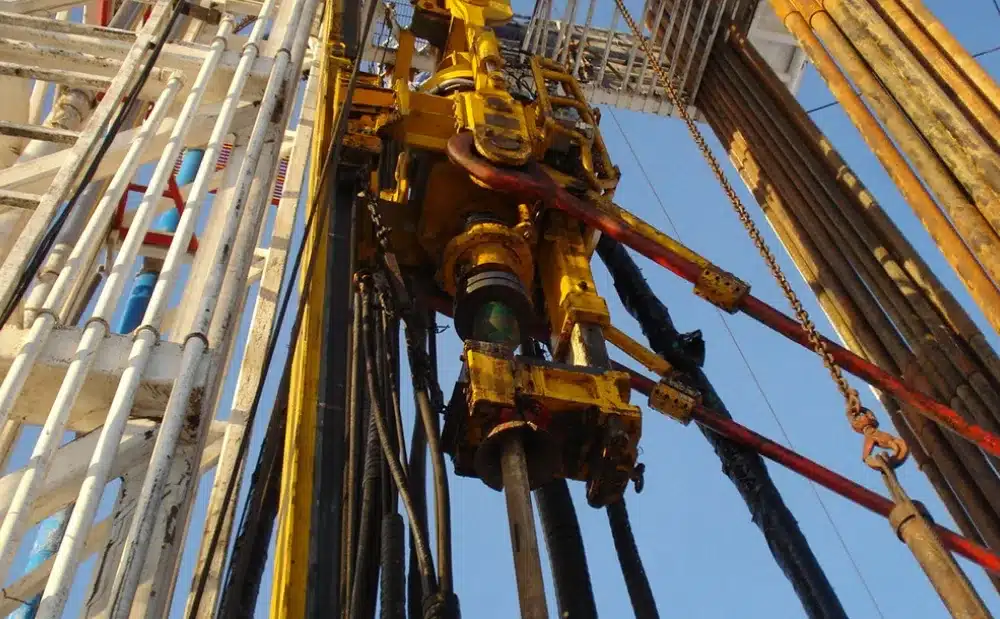

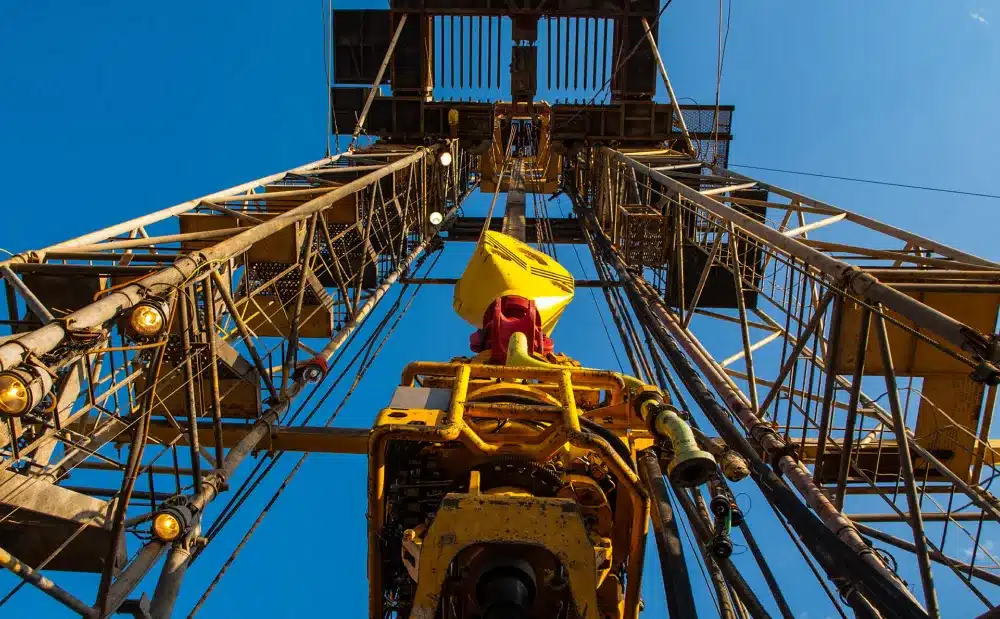

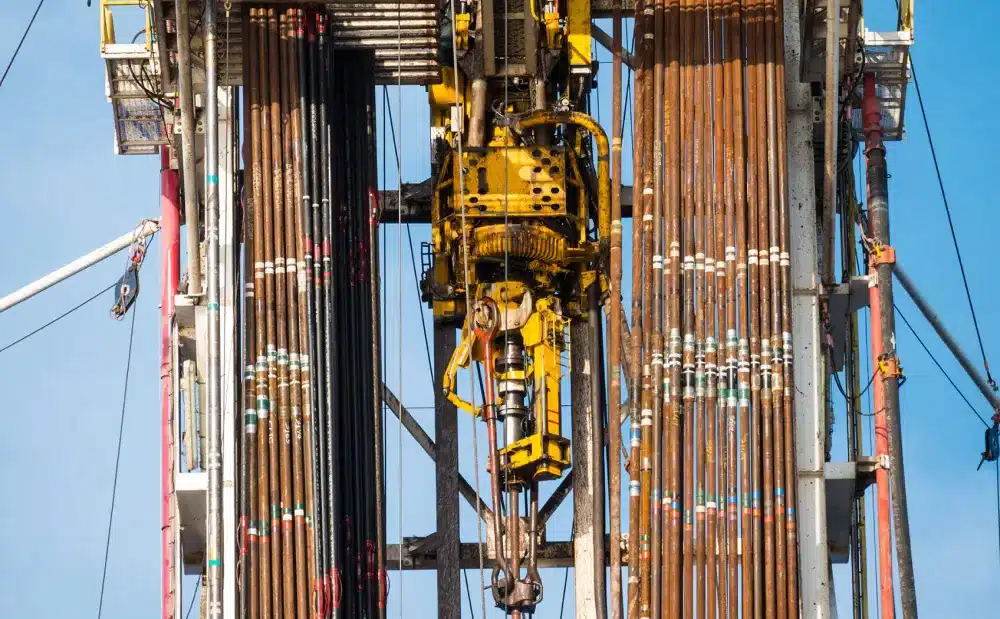

Top drive systems are the powerhouse and cutting-edge technology of modern drilling. With extensive experience in the oil and gas industry, TFL provides reliable solutions for your drilling equipment.
The Unique Challenges of Top Drive System
We offer a variety of electric insulating bearings to choose from. The standard bearing classifications include deep groove ball bearings, cylindrical roller bearings, and tapered roller bearings. We have the standard bearing classifications shown below in stock and can deliver quickly.
Challenge 1: Electrical Current Damage
Problem Description: Top drive systems use high-power motors, which create a risk of harmful shaft currents. Without effective insulation, high-frequency currents pass through the top drive system motor bearings, damaging bearing surfaces and lubricant. This leads to premature bearing failure, causing motor or gearbox breakdowns and complete system downtime.
TFL's countermeasures
- Alumina Insulating Coating: Physically blocks electrical current to prevent a damaging circuit from forming.
- High Electrical Resistance: Up to 200 MΩ to provide reliable insulation protection.
- Plasma Spraying Process: Creates a dense, strongly bonded layer for stable.
Challenge 2: Complex Loads
Problem Description: The harsh conditions of drilling subject top drive system bearings to strong vibrations and shocks from rock breaking. They must also support the immense weight of the drill string and handle high torque output. This is a huge challenge for the bearing’s load capacity, and insufficient strength will lead to premature failure.
TFL's countermeasures
- High-Strength Bearing Steel: High toughness and durability.
- Optimized Bearing Types: Insulated cylindrical or tapered roller bearings.
- Durable Insulating Coating: The plasma-sprayed coating is robust.
Challenge 3: Complex Maintenance
Problem Description: Top drive systems are complex. If an electrically insulated bearing or a related component fails, on-site teams often lack the ability to perform major repairs. This requires specialized engineers or returning the entire unit to the factory, causing significant downtime and financial loss.
TFL's countermeasures
- Rigorous Testing Protocols: Ensures every bearing meets strict durability and performance standards before shipping.
- International Certifications: Manufacturing complies with global standards (e.g., ISO).
- Extensive Industry Experience: Custom bearing solutions are designed based on deep expertise in oil & gas applications.
Challenge 4: Noise & Environmental Impact
Problem Description:Reducing equipment noise is a key goal for worker safety and environmental protection. Traditional top drive noise can exceed 90 dB, harming worker health and communication. The optimized design of electrically insulated bearings can effectively help reduce this noise.
TFL's countermeasures
- High-Precision Machining (P5 Class or higher): Reduces friction for smoother and quieter bearing operation.
- Low-Noise Cage Design: Minimized impact and noise generated by the rolling elements.
- Custom Lubrication: Specialized low-noise synthetic grease dampens vibration and sound.
Recommended products: Machine Tool series
We integrate patented technology, stringent quality control, and supply chain efficiency to deliver unmatched reliability and value to our partners.
More Than Standard Products: Flexible Custom Solutions
Whether you require the development of special-sized bearings or need insulation coating services for your existing ones, our technical team provides comprehensive support from design to flexible production, responding quickly to your unique needs.
Typical Applications
We provide proven insulated bearing solutions that ensure both complete electrical protection and optimal mechanical performance, enhancing the longevity and reliability of your machinery in any industrial environment.
Bearings For Railway Transportation
TFL’s insulated bearings, with robust aluminum oxide ceramic coatings, are vital for railway traction motors. They establish a powerful dielectric barrier, effectively blocking damaging shaft currents from Variable Frequency Drives (VFDs), thus preventing electrical erosion and premature equipment failure.
By safeguarding these critical components, our bearings significantly enhance the safety, reliability, and uptime of modern railway systems. As a trusted supplier, we provide proven solutions designed for the rigorous demands of daily rail operation.
Hot Market
- Special Insulated Bearings for Traction Motors
- High Resistance to Shock & Vibration
- Hybrid Ceramic Bearing Options
Bearings For Wind Power
Wind power is cornerstone of sustainable energy vital for combating climate change and the one solution to energy
issues such as the prevention of global warming.
Given the substantial maintenance costs and extended downtime associated with these large, eco-friendly systems, our bearings offer indispensable protection. By creating a robust dielectric barrier, they ensure the stable, reliable, and continuous operation of wind turbines, significantly reducing maintenance interventions and supporting a greener, more efficient energy future.
Hot Market
- Main Shaft & Generator Bearings
- High-Reliability & Long-Life Design
- Coating for Harsh Environments
Bearings For Industrial Pumps & Fans
For VFD-driven industrial pumps and fans where stray currents threaten reliability, our insulated bearings are the proven solution. They feature a specialized dielectric coating that safely interrupts the electrical path, preventing catastrophic bearing failure and costly downtime. This makes our bearings a fundamental component for ensuring the safe, continuous operation of your most vital systems.
Hot Market
- Preventing Premature Failure from Shaft Currents
- Reducing Maintenance Frequency & Costs
- Standard Dimensions for Easy Replacement
Bearings For Mining Industry
The mining industry is foundational, providing essential raw materials that underpin modern infrastructure and technology. Operations involve colossal, heavy-duty machinery in harsh, often remote environments, demanding exceptional safety standards and continuous production. These demanding conditions, coupled with the high cost and risk of maintenance, make equipment reliability paramount.
TFL’s insulated bearings offer a critical safeguard, specifically engineered for the mining sector. They create a robust dielectric barrier, effectively blocking damaging shaft currents generated by Variable Frequency Drives (VFDs), which otherwise lead to electrical erosion and premature equipment failure. This ensures the stable and uninterrupted operation of vital mining equipment, significantly reducing costly downtime, enhancing worker safety, and sustaining productivity in the most challenging conditions.
Hot Market
- For Excavator, Crusher & Conveyor Motors
- Design for High Contamination & Shock Loads
- Enhancing Equipment Reliability in Harsh Environments
Bearings For Oil & Gas Industry
We utilize a robust aluminum oxide coating to provide superior electrical insulation in our bearings. This is vital for Oil & Gas operations, where stray currents from VFDs can cause sparks and lead to catastrophic failure in potentially explosive atmospheres. As a dedicated partner, we deliver insulated bearings that enhance equipment safety and maximize uptime for your critical machinery.
Hot Market
- For Pumps, Compressors & Drilling Motors
- Ensuring Continuous Operation of Mission-Critical Equipment
- Optional Coatings for Corrosive & High-Temp Environments
Bearings For Industrial Motor
Industrial motors are the undisputed heart of productivity, driving essential processes across nearly every sector. However, modern Variable Frequency Drives (VFDs) generate damaging shaft currents that threaten motor longevity and reliability.
TFL’s insulated bearings offer critical protection, establishing a robust dielectric barrier. This prevents electrical erosion and premature failure, ensuring consistent, long-term performance of these vital machines. By safeguarding the ‘heart’ of your operations, our bearings significantly reduce unplanned downtime, cut maintenance costs, and enhance operational efficiency and motor lifespan.
Hot Market
- Insulation Protection for VFD Motors
- Insulated Deep Groove Ball Bearings
- Insulated Cylindrical Roller Bearings
General FAQ
Find quick answers to common inquiries about our technology, product compatibility, and ordering process.
What are the insulation specifications of TFL bearings?
Our robust insulating layer, with a thickness ranging from 100 to 500 µm, reliably withstands breakdown voltages between 1000V and 3000V. This advanced insulation also provides an exceptional electrical resistance of 50 MΩ to 200 MΩ, ensuring effective defense against damaging shaft currents.
For more detailed specifications or any inquiries, contact us any time.
How can I apply for samples for preliminary testing?
What is the lead time for standard models?
As a leading supplier of electrically insulated bearings, we maintain an extensive inventory of standard models. The majority of orders are dispatched within 10 business days or less. Once shipped, you will receive tracking information to monitor your delivery until successful receipt.
Can your products serve as a direct replacement for the SKF VL0241 series?
Our insulated bearings are meticulously engineered for a seamless, direct replacement with the SKF VL0241 series. Both in terms of insulation performance and dimensional accuracy, our products are fully compliant and equivalent to SKF INSOCOAT bearings. This enables you to achieve identical performance and reliability at a significantly lower procurement cost.
Should you have specific product requirements, please send us your inquiry. We will promptly provide detailed product data and a competitive quotation.
