Zero-Tolerance Reliability: Insulated Bearings Engineered for Traction Motors
In the field of rail transportation and new energy vehicles, bearing failure is not only a cost issue, but also a safety issue. TFL provides electrically insulated bearings that meet the most stringent industry standards to ensure the safe and stable operation of your traction system throughout its life cycle.

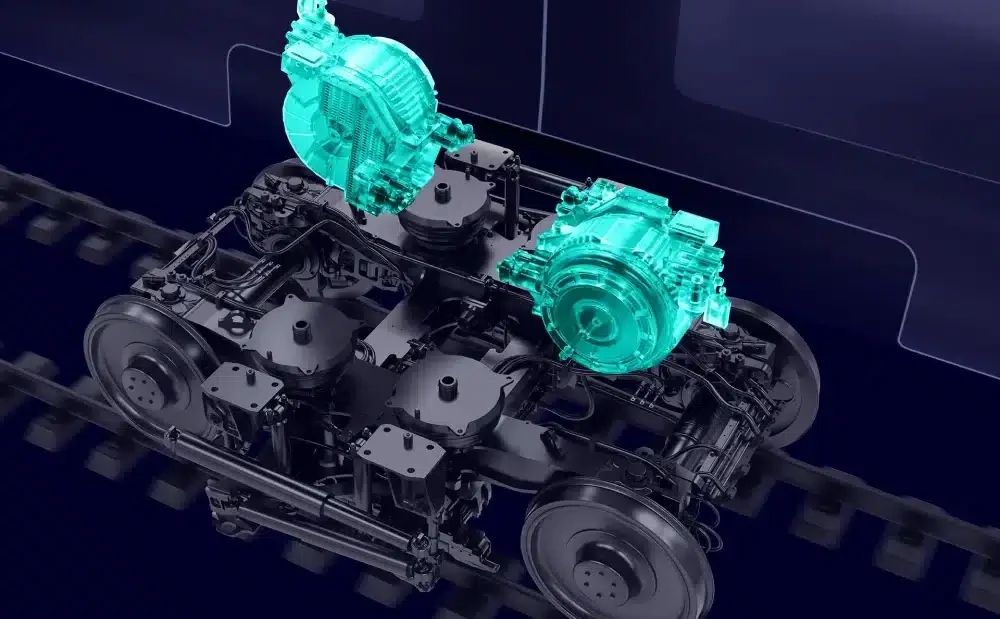

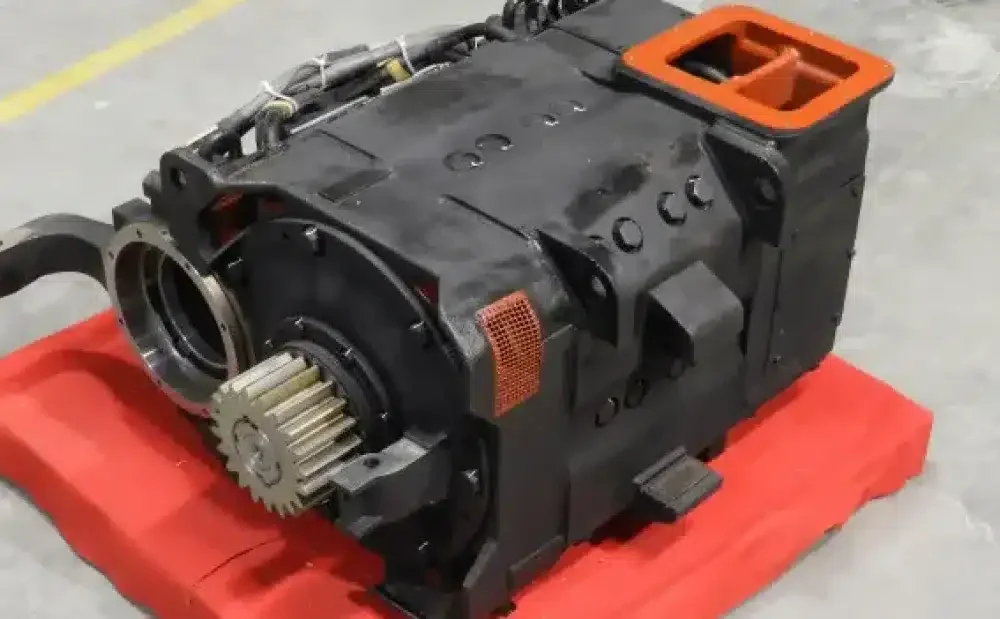

The Unique Challenges of Traction Motors
We offer a variety of electric insulating bearings to choose from. The standard bearing classifications include deep groove ball bearings, cylindrical roller bearings, and tapered roller bearings. We have the standard bearing classifications shown below in stock and can deliver quickly.
Challenge 1: High-Frequency Common-Mode Voltage
Problem Description: The high-frequency switching (PWM) characteristics of the IGBT inverter generate a high-frequency common-mode voltage on the motor shaft. Its dV/dt value is extremely high, enough to break through the oil film of ordinary grease and cause destructive discharge.
TFL's countermeasures
- Robust Insulating Barrier: Reliably breaks the electrical circuit.
- High-Purity Al₂O₃ Coating: Ensures stable and durable insulation performance.
- Breakdown Voltage up to 3000V DC: Handles even the most demanding VFD applications.
- Prevents Pitting & Fluting: Directly eliminates the root cause of electrical bearing damage.
Challenge 2: Extreme working conditions
Problem Description: Modern rail transport is rapidly developing, with speeds reaching up to 450 km/h. Traction motors must withstand immense impact loads during start-up and braking. This increases the demand for high-speed stability and reliability of bearings.
TFL's countermeasures
- High-strength Bearing Steel: Ensures bearing body withstands severe mechanical stress.
- Stepped Curing Process: Creates strong coating-substrate bond, improving anti-peeling ability.
- Comprehensive Testing Mechanisms: Guarantees full performance and reliability of electrically insulated bearings.
Challenge 3: Difficult Maintenance
Problem Description: The internal structure of traction motors is typically very compact. This means motor bearings must provide perfect solutions within limited space. Premature bearing failure can lead to motor downtime and cascading losses.
TFL's countermeasures
- Standard Dimensions: Requires no extra space, allowing direct replacement of ordinary bearings.
- FKM/FFKM Seals: Withstands high temperatures, reducing seal replacement frequency.
- Complex Lithium Soap Grease: Provides long-term effective lubrication even at high temperatures.
Challenge 4: Increased Demand for Maintenance-Free Operation
Problem Description: Railway companies are increasingly pursuing maintenance-free operating models. For example, Japan’s Shinkansen comprehensive inspection cycle is extending from under 900,000 km/event to 1,200,000 km/event. Stable performance from traction motor electrically insulated bearings is a key factor in achieving this goal.
TFL's countermeasures
- Roller-Guided Cages: Exhibits slow wear, extending maintenance cycles.
- Heat-Resistant Bearing Steel: Prevents high-temperature softening, avoiding raceway pitting and wear.
- C3/C4 Radial Clearance: Accommodates thermal expansion at high temperatures, preventing premature failure.
Recommended products: Traction motor series
We integrate patented technology, stringent quality control, and supply chain efficiency to deliver unmatched reliability and value to our partners.
More Than Standard Products: Flexible Custom Solutions
Whether you require the development of special-sized bearings or need insulation coating services for your existing ones, our technical team provides comprehensive support from design to flexible production, responding quickly to your unique needs.
Typical Applications
We provide proven insulated bearing solutions that ensure both complete electrical protection and optimal mechanical performance, enhancing the longevity and reliability of your machinery in any industrial environment.

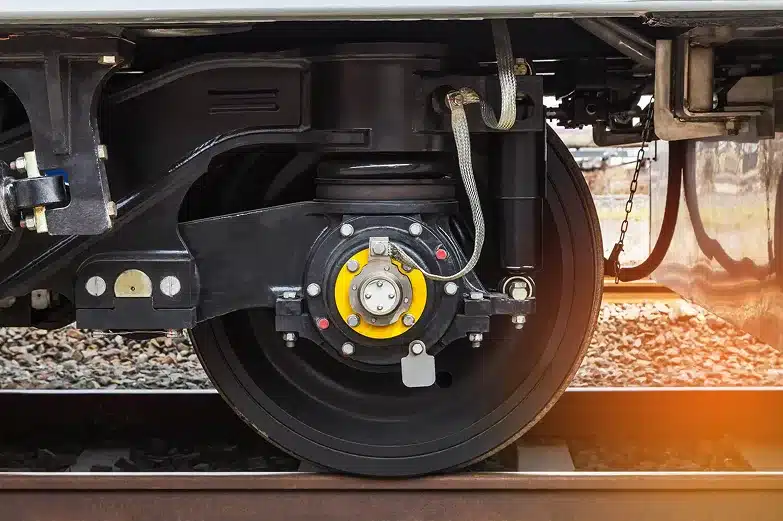

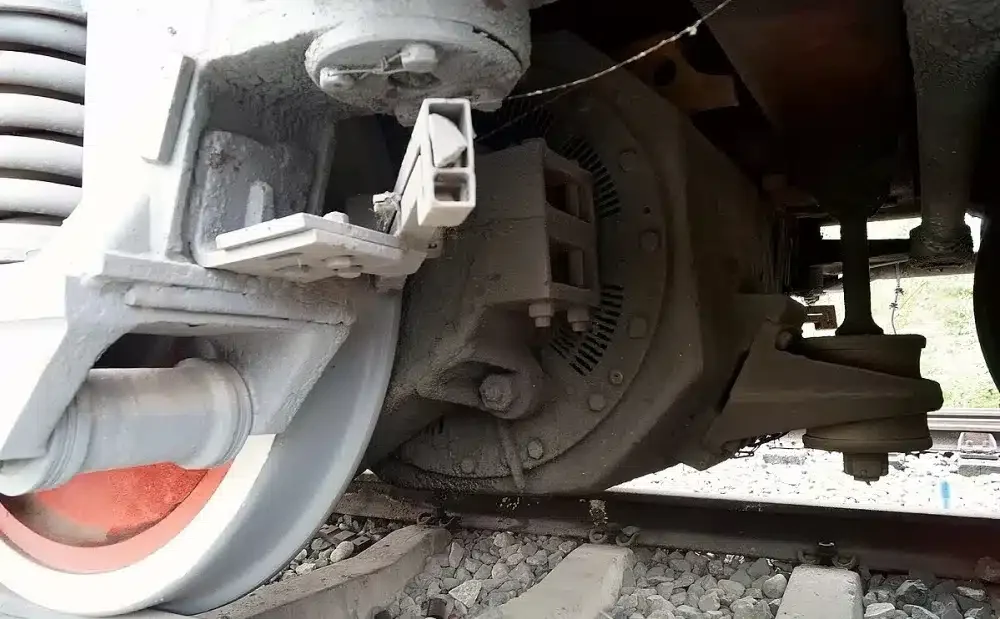

Bearings For Railway Transportation
TFL’s insulated bearings, with robust aluminum oxide ceramic coatings, are vital for railway traction motors. They establish a powerful dielectric barrier, effectively blocking damaging shaft currents from Variable Frequency Drives (VFDs), thus preventing electrical erosion and premature equipment failure.
By safeguarding these critical components, our bearings significantly enhance the safety, reliability, and uptime of modern railway systems. As a trusted supplier, we provide proven solutions designed for the rigorous demands of daily rail operation.
Hot Market
- Special Insulated Bearings for Traction Motors
- High Resistance to Shock & Vibration
- Hybrid Ceramic Bearing Options
Bearings For Wind Power
Wind power is cornerstone of sustainable energy vital for combating climate change and the one solution to energy
issues such as the prevention of global warming.
Given the substantial maintenance costs and extended downtime associated with these large, eco-friendly systems, our bearings offer indispensable protection. By creating a robust dielectric barrier, they ensure the stable, reliable, and continuous operation of wind turbines, significantly reducing maintenance interventions and supporting a greener, more efficient energy future.
Hot Market
- Main Shaft & Generator Bearings
- High-Reliability & Long-Life Design
- Coating for Harsh Environments
Bearings For Industrial Motor
Industrial motors are the undisputed heart of productivity, driving essential processes across nearly every sector. However, modern Variable Frequency Drives (VFDs) generate damaging shaft currents that threaten motor longevity and reliability.
TFL’s insulated bearings offer critical protection, establishing a robust dielectric barrier. This prevents electrical erosion and premature failure, ensuring consistent, long-term performance of these vital machines. By safeguarding the ‘heart’ of your operations, our bearings significantly reduce unplanned downtime, cut maintenance costs, and enhance operational efficiency and motor lifespan.
Hot Market
- Insulation Protection for VFD Motors
- Insulated Deep Groove Ball Bearings
- Insulated Cylindrical Roller Bearings
Bearings For Industrial Pumps & Fans
For VFD-driven industrial pumps and fans where stray currents threaten reliability, our insulated bearings are the proven solution. They feature a specialized dielectric coating that safely interrupts the electrical path, preventing catastrophic bearing failure and costly downtime. This makes our bearings a fundamental component for ensuring the safe, continuous operation of your most vital systems.
Hot Market
- Preventing Premature Failure from Shaft Currents
- Reducing Maintenance Frequency & Costs
- Standard Dimensions for Easy Replacement
Bearings For Mining Industry
The mining industry is foundational, providing essential raw materials that underpin modern infrastructure and technology. Operations involve colossal, heavy-duty machinery in harsh, often remote environments, demanding exceptional safety standards and continuous production. These demanding conditions, coupled with the high cost and risk of maintenance, make equipment reliability paramount.
TFL’s insulated bearings offer a critical safeguard, specifically engineered for the mining sector. They create a robust dielectric barrier, effectively blocking damaging shaft currents generated by Variable Frequency Drives (VFDs), which otherwise lead to electrical erosion and premature equipment failure. This ensures the stable and uninterrupted operation of vital mining equipment, significantly reducing costly downtime, enhancing worker safety, and sustaining productivity in the most challenging conditions.
Hot Market
- For Excavator, Crusher & Conveyor Motors
- Design for High Contamination & Shock Loads
- Enhancing Equipment Reliability in Harsh Environments
Bearings For Oil & Gas Industry
We utilize a robust aluminum oxide coating to provide superior electrical insulation in our bearings. This is vital for Oil & Gas operations, where stray currents from VFDs can cause sparks and lead to catastrophic failure in potentially explosive atmospheres. As a dedicated partner, we deliver insulated bearings that enhance equipment safety and maximize uptime for your critical machinery.
Hot Market
- For Pumps, Compressors & Drilling Motors
- Ensuring Continuous Operation of Mission-Critical Equipment
- Optional Coatings for Corrosive & High-Temp Environments
General FAQ
Find quick answers to common inquiries about our technology, product compatibility, and ordering process.
What are the insulation specifications of TFL bearings?
Our robust insulating layer, with a thickness ranging from 100 to 500 µm, reliably withstands breakdown voltages between 1000V and 3000V. This advanced insulation also provides an exceptional electrical resistance of 50 MΩ to 200 MΩ, ensuring effective defense against damaging shaft currents.
For more detailed specifications or any inquiries, contact us any time.
How can I apply for samples for preliminary testing?
What is the lead time for standard models?
As a leading supplier of electrically insulated bearings, we maintain an extensive inventory of standard models. The majority of orders are dispatched within 10 business days or less. Once shipped, you will receive tracking information to monitor your delivery until successful receipt.
Can your products serve as a direct replacement for the SKF VL0241 series?
Our insulated bearings are meticulously engineered for a seamless, direct replacement with the SKF VL0241 series. Both in terms of insulation performance and dimensional accuracy, our products are fully compliant and equivalent to SKF INSOCOAT bearings. This enables you to achieve identical performance and reliability at a significantly lower procurement cost.
Should you have specific product requirements, please send us your inquiry. We will promptly provide detailed product data and a competitive quotation.
