NSK Ceramic-Coated Insulated Bearing Sizes
Wondering why bearings with the same bore size belong to different series?
This page organizes insulated bearings by series—such as 6000, 6200, and 6300—to help you quickly locate the right model and its corresponding dimensions.
This page organizes insulated bearings by series—such as 6000, 6200, and 6300—to help you quickly locate the right model and its corresponding dimensions.
Quick search
Deep Groove Ball Bearing:
NSK Insulated Deep Groove Ball Bearings

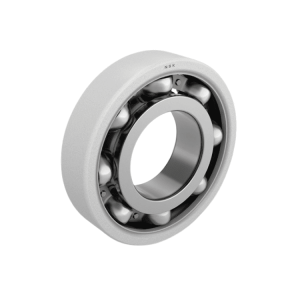

6300 Series Insulated Bearings Sizes
Special feature of this series
Main dimensions according to DIN 625-1. Ball bearings of the 63 medium series offer a balanced ratio between their radial load carrying capacity, the required installation space, their weight, and the admissible speed. Consequently, they are versatile.
| Model | Bore Diameter | Outside Diameter | Width | Basic Dynamic Load Rating | Basic Static Load Rating | Reference Speed | Radial Internal Clearance |
|---|---|---|---|---|---|---|---|
|
6312HDY2C3
|
60.0 mm
|
130.0 mm
|
31.0 mm
|
85.2 kN
|
52.0 kN
|
11000 r/min
|
C3
|
|
6313HDY2C3
|
65.0 mm
|
140.0 mm
|
33.0 mm
|
97.5 kN
|
60.0 kN
|
10000 r/min
|
C3
|
|
6314HDY2C3
|
70.0 mm
|
150.0 mm
|
35.0 mm
|
104.0 kN
|
68.0 kN
|
9500.0 r/min
|
C3
|
|
6315HDY2C3
|
75.0 mm
|
160.0 mm
|
37.0 mm
|
119.0 kN
|
76.5 kN
|
9000.0 r/min
|
C3
|
|
6215HDY2C3
|
75.0 mm
|
130.0 mm
|
25.0 mm
|
68.9 kN
|
49.0 kN
|
10000.0 r/min
|
C3
|
|
6216HDY2C3
|
80.0 mm
|
140.0 mm
|
26.0 mm
|
72.8 kN
|
55.0 kN
|
9500.0 r/min
|
C3
|
|
6316HDY2C3
|
80.0 mm
|
170.0 mm
|
39.0 mm
|
130.0 kN
|
86.5 kN
|
8500.0 r/min
|
C3
|
|
6217HDY2C3
|
85.0 mm
|
150.0 mm
|
28.0 mm
|
87.1 kN
|
64.0 kN
|
9000.0 r/min
|
C3
|
|
6317HDY2C3
|
85.0 mm
|
180.0 mm
|
41.0 mm
|
140.0 kN
|
96.5 kN
|
8000.0 r/min
|
C3
|
|
6318HDY2C3
|
90.0 mm
|
190.0 mm
|
43.0 mm
|
151.0 kN
|
108.0 kN
|
7500.0 r/min
|
C3
|
|
6218HDY2C3
|
90.0 mm
|
160.0 mm
|
30.0 mm
|
101.0 kN
|
73.5 kN
|
8500.0 r/min
|
C3
|
|
6319HDY2C3
|
95.0 mm
|
200.0 mm
|
45.0 mm
|
159.0 kN
|
118.0 kN
|
7000.0 r/min
|
C3
|
|
6319HDY2MC3
|
95.0 mm
|
200.0 mm
|
45.0 mm
|
159.0 kN
|
118.0 kN
|
7000.0 r/min
|
C3
|
|
6219HDY2C3
|
95.0 mm
|
170.0 mm
|
32.0 mm
|
114.0 kN
|
81.5 kN
|
8000.0 r/min
|
C3
|
|
6320HDY2C3
|
100.0 mm
|
215.0 mm
|
47.0 mm
|
182.0 kN
|
140.0 kN
|
6700.0 r/min
|
C3
|
|
6220HDY2C3
|
100.0 mm
|
180.0 mm
|
34.0 mm
|
127.0 kN
|
93.0 kN
|
7500.0 r/min
|
C3
|
|
6322HDY2C3
|
110.0 mm
|
240.0 mm
|
50.0 mm
|
216.0 kN
|
180.0 kN
|
6000.0 r/min
|
C3
|
|
6222HDY2C3
|
110.0 mm
|
200.0 mm
|
38.0 mm
|
151.0 kN
|
118.0 kN
|
6700.0 r/min
|
C3
|
|
6324HDY2C3
|
120.0 mm
|
260.0 mm
|
55.0 mm
|
216.0 kN
|
186.0 kN
|
5600.0 r/min
|
C3
|
|
6224HDY2C3
|
120.0 mm
|
215.0 mm
|
40.0 mm
|
146.0 kN
|
118.0 kN
|
6300.0 r/min
|
C3
|
|
6226HDY2C3
|
130.0 mm
|
230.0 mm
|
40.0 mm
|
156.0 kN
|
132.0 kN
|
5600.0 r/min
|
C3
|
|
6326HDY2C3
|
130.0 mm
|
280.0 mm
|
58.0 mm
|
229.0 kN
|
216.0 kN
|
5000.0 r/min
|
C3
|
