SKF Insulated Bearings Sizes

Wondering why bearings with the same bore size belong to different series?
This page organizes insulated bearings by series—such as 6000, 6200, and 6300—to help you quickly locate the right model and its corresponding dimensions.

Quick search

Deep Groove Ball Bearing:

6000 Series

6200 Series

6300 Seriers

Cylindrical Roller Bearing:

10 Series

02 Series

03 Series

SKF Insulated Deep Groove Ball Bearings

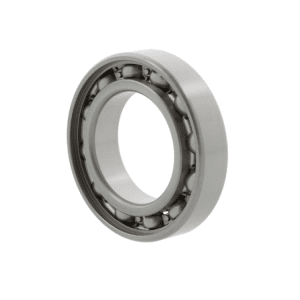

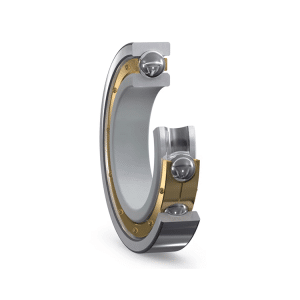

6000 Series Insulated Bearings Sizes

Special feature of this series

Main dimensions according to DIN 625-1. Ball bearings of the extra-light 60 series can still support radial loads despite their low weight. Compared to deep groove ball bearings of the 63 medium series they require a smaller installation space at the same inside diameter, only weigh half of them, and allow higher speeds.

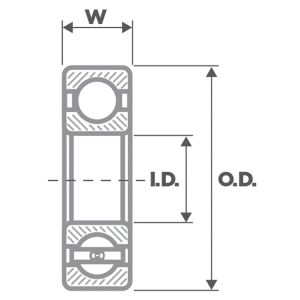

Model	Bore Diameter	Outside Diameter	Width	Basic Dynamic Load Rating	Basic Static Load Rating	Reference Speed	Radial Internal Clearance
6020/C3VL2071	100.0 mm	150.0 mm	24.0 mm	64.0 kN	54.0 kN	6100.0 r/min	C3
6022/C3VL0241	110.0 mm	170.0 mm	28.0 mm	85.2 kN	73.5 kN	8000 r/min	C3
6024/C3VL0241	120.0 mm	180.0 mm	28.0 mm	88.4 kN	80.0 kN	7500.0 r/min	C3
6030/C3VL2071	150.0 mm	225.0 mm	35.0 mm	131.0 kN	124.0 kN	3950 r/min	C3
6034/C3VL2071	170.0 mm	260.0 mm	42.0 mm	179.0 kN	172.0 kN	3400.0 r/min	C3
6036M/C3VL0241	180.0 mm	280.0 mm	46.0 mm	201.0 kN	199.0 kN	4050 r/min	C3
6044M/C3VL0241	220.0 mm	340.0 mm	56.0 mm	247.0 kN	290.0 kN	3300 r/min	C3

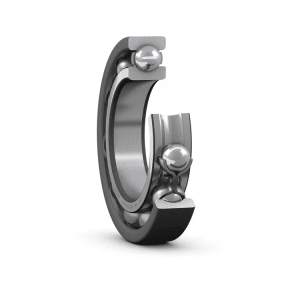

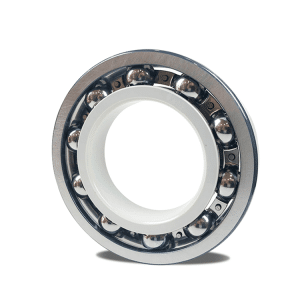

6200 Series Insulated Bearings Sizes

Special feature of this series

Main dimensions according to DIN 625-1. Ball bearings of the 62 light series support relatively high radial load-ratings despite their reduced weight. Compared to deep groove ball bearings of the 63 and 64 series they require a smaller installation space at the same inside diameter by their relatively small outside diameter and allow slightly higher speeds furthermore.

Model	Bore Diameter	Outside Diameter	Width	Basic Dynamic Load Rating	Basic Static Load Rating	Reference Speed	Radial Internal Clearance
6212M/C3VL0241	60.0 mm	110.0 mm	22.0 mm	57.0 kN	36.5 kN	13000 r/min	C3
6212M/C4VL0241	60.0 mm	110.0 mm	22.0 mm	57.0 kN	36.5 kN	13000 r/min	C4
6213/C4VL0241	65.0 mm	120.0 mm	23.0 mm	63.0 kN	41.5 kN	8600 r/min	C4
6214/C4VL0241	70.0 mm	125.0 mm	24.0 mm	66.0 kN	44.0 kN	10000 r/min	C4
6214M/C3VL0241	70.0 mm	125.0 mm	24.0 mm	66.0 kN	44.0 kN	10000 r/min	C3
6214M/C4VL0241	70.0 mm	125.0 mm	24.0 mm	66.0 kN	44.0 kN	10000 r/min	C4
6215/C3VL0241	75.0 mm	130.0 mm	25.0 mm	68.9 kN	49.0 kN	10000.0 r/min	C3
6215/C4VL0241	75.0 mm	130.0 mm	25.0 mm	68.9 kN	49.0 kN	10000.0 r/min	C4
6215M/C4VL0241	75.0 mm	130.0 mm	25.0 mm	68.9 kN	49.0 kN	10000.0 r/min	C4
6216/C3VL0241	80.0 mm	140.0 mm	26.0 mm	72.8 kN	55.0 kN	9500.0 r/min	C3
6216/C4VL0241	80.0 mm	140.0 mm	26.0 mm	72.8 kN	55.0 kN	9500.0 r/min	C4
6216M/C3VL0241	80.0 mm	140.0 mm	26.0 mm	72.8 kN	55.0 kN	9500.0 r/min	C3
6216M/C4VL0241	80.0 mm	140.0 mm	26.0 mm	72.8 kN	55.0 kN	9500.0 r/min	C4
6217/C3VL0241	85.0 mm	150.0 mm	28.0 mm	87.1 kN	64.0 kN	9000.0 r/min	C3
6217M/C3VL0241	85.0 mm	150.0 mm	28.0 mm	87.1 kN	64.0 kN	9000.0 r/min	C3
6217M/C4VL0241	85.0 mm	150.0 mm	28.0 mm	87.1 kN	64.0 kN	9000.0 r/min	C4
6218/C3VL0241	90.0 mm	160.0 mm	30.0 mm	101.0 kN	73.5 kN	8500.0 r/min	C3
6218M/C3VL0241	90.0 mm	160.0 mm	30.0 mm	101.0 kN	73.5 kN	8500.0 r/min	C3
6218M/C4VL0241	90.0 mm	160.0 mm	30.0 mm	101.0 kN	73.5 kN	8500.0 r/min	C4
6219/C3VL0241	95.0 mm	170.0 mm	32.0 mm	114.0 kN	81.5 kN	8000.0 r/min	C3
6219/C3VL2071	95.0 mm	170.0 mm	32.0 mm	114.0 kN	81.5 kN	8000.0 r/min	C3
6219/C4VL0241	95.0 mm	170.0 mm	32.0 mm	114.0 kN	81.5 kN	8000.0 r/min	C4
6219M/C3VL0241	95.0 mm	170.0 mm	32.0 mm	114.0 kN	81.5 kN	8000.0 r/min	C3
6220/C3VL0241	100.0 mm	180.0 mm	34.0 mm	127.0 kN	93.0 kN	7500.0 r/min	C3
6220/C4VL0241	100.0 mm	180.0 mm	34.0 mm	127.0 kN	93.0 kN	7500.0 r/min	C4
6220M/C3VL0241	100.0 mm	180.0 mm	34.0 mm	127.0 kN	93.0 kN	7500.0 r/min	C3
6220M/C4VL0241	100.0 mm	180.0 mm	34.0 mm	127.0 kN	93.0 kN	7500.0 r/min	C4
6221M/C4VL0241	105.0 mm	190.0 mm	36.0 mm	141.0 kN	105.0 kN	6100.0 r/min	C4
6222/C3VL0241	110.0 mm	200.0 mm	38.0 mm	151.0 kN	118.0 kN	6700.0 r/min	C3
6222M/C3VL0241	110.0 mm	200.0 mm	38.0 mm	151.0 kN	118.0 kN	6700.0 r/min	C3
6222M/C4VL0241	110.0 mm	200.0 mm	38.0 mm	151.0 kN	118.0 kN	6700.0 r/min	C4
6224/C3VL0241	120.0 mm	215.0 mm	40.0 mm	146.0 kN	118.0 kN	6300.0 r/min	C3
6224/C4VL0241	120.0 mm	215.0 mm	40.0 mm	146.0 kN	118.0 kN	6300.0 r/min	C4
6224M/C3VL0241	120.0 mm	215.0 mm	40.0 mm	146.0 kN	118.0 kN	6300.0 r/min	C3
6224M/C4VL0241	120.0 mm	215.0 mm	40.0 mm	146.0 kN	118.0 kN	6300.0 r/min	C4
6224M/C4VL2071	120.0 mm	215.0 mm	40.0 mm	146.0 kN	118.0 kN	6300.0 r/min	C4
6226/C3VL0241	130.0 mm	230.0 mm	40.0 mm	156.0 kN	132.0 kN	5600.0 r/min	C3
6226/C3VL2071	130.0 mm	230.0 mm	40.0 mm	156.0 kN	132.0 kN	5600.0 r/min	C3
6226M/C3VL0241	130.0 mm	230.0 mm	40.0 mm	156.0 kN	132.0 kN	5600.0 r/min	C3
6228/C3VL0241	140.0 mm	250.0 mm	42.0 mm	174.0 kN	150.0 kN	5300.0 r/min	C3
6228/C3VL2071	140.0 mm	250.0 mm	42.0 mm	174.0 kN	150.0 kN	5300.0 r/min	C3
6228/C4VL0241	140.0 mm	250.0 mm	42.0 mm	174.0 kN	150.0 kN	5300.0 r/min	C4
6230/C3VL0241	150.0 mm	270.0 mm	45.0 mm	186.0 kN	166.0 kN	5000.0 r/min	C3
6230/C3VL2071	150.0 mm	270.0 mm	45.0 mm	186.0 kN	166.0 kN	5000.0 r/min	C3
6230/C4VL0241	150.0 mm	270.0 mm	45.0 mm	186.0 kN	166.0 kN	5000.0 r/min	C4
6230/C4VL2071	150.0 mm	270.0 mm	45.0 mm	186.0 kN	166.0 kN	5000.0 r/min	C4
6230M/C3VL0241	150.0 mm	270.0 mm	45.0 mm	186.0 kN	166.0 kN	5000.0 r/min	C3
6232M/C3VL0241	160.0 mm	290.0 mm	48.0 mm	212.0 kN	203.0 kN	4150 r/min	C3
6232M/C3VL2071	160.0 mm	290.0 mm	48.0 mm	212.0 kN	203.0 kN	4150 r/min	C3
6232M/C4VL2071	160.0 mm	290.0 mm	48.0 mm	212.0 kN	203.0 kN	4150 r/min	C4
6234M/C3VL0241	170.0 mm	310.0 mm	52.0 mm	225.0 kN	224.0 kN	3800 r/min	C3
6234M/C4VL0241	170.0 mm	310.0 mm	52.0 mm	225.0 kN	224.0 kN	3800 r/min	C4
6236M/C3VL0241	180.0 mm	320.0 mm	52.0 mm	240.0 kN	244.0 kN	3650 r/min	C3
6236M/C3VL2071	180.0 mm	320.0 mm	52.0 mm	240.0 kN	244.0 kN	3650 r/min	C3
6238M/C3VL2071	190.0 mm	340.0 mm	55.0 mm	255.0 kN	280.0 kN	3350 r/min	C3

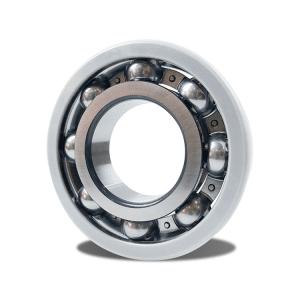

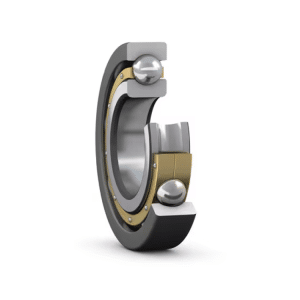

6300 Series Insulated Bearings Sizes

Special feature of this series

Main dimensions according to DIN 625-1. Ball bearings of the 63 medium series offer a balanced ratio between their radial load carrying capacity, the required installation space, their weight, and the admissible speed. Consequently, they are versatile.

Model	Bore Diameter	Outside Diameter	Width	Basic Dynamic Load Rating	Basic Static Load Rating	Reference Speed	Radial Internal Clearance
6309/C3VL0241	45.0 mm	100.0 mm	25.0 mm	56.0 kN	31.5 kN	9500 r/min	C3
6309/C4VL0241	45.0 mm	100.0 mm	25.0 mm	56.0 kN	31.5 kN	9500 r/min	C4
6310/C3VL0241	50.0 mm	110.0 mm	27.0 mm	65.0 kN	38.0 kN	9500 r/min	C3
6310M/C3VL0241	50.0 mm	110.0 mm	27.0 mm	65.0 kN	38.0 kN	13000 r/min	C3
6311/C3VL0241	55.0 mm	120.0 mm	29.0 mm	83.0 kN	47.5 kN	8500 r/min	C3
6311M/C3VL0241	55.0 mm	120.0 mm	29.0 mm	83.0 kN	47.5 kN	11000 r/min	C3
6311M/C4VL0241	55.0 mm	120.0 mm	29.0 mm	83.0 kN	47.5 kN	11000 r/min	C4
6312/C3VL0241	60.0 mm	130.0 mm	31.0 mm	85.2 kN	52.0 kN	11000 r/min	C3
6312/C4VL0241	60.0 mm	130.0 mm	31.0 mm	85.2 kN	52.0 kN	11000 r/min	C4
6312M/C3VL0241	60.0 mm	130.0 mm	31.0 mm	85.2 kN	52.0 kN	11000 r/min	C3
6312M/C4VL0241	60.0 mm	130.0 mm	31.0 mm	85.2 kN	52.0 kN	11000 r/min	C4
6313/C3VL0241	65.0 mm	140.0 mm	33.0 mm	97.5 kN	60.0 kN	10000 r/min	C3
6313M/C3VL0241	65.0 mm	140.0 mm	33.0 mm	97.5 kN	60.0 kN	10000 r/min	C3
6313M/C4VL0241	65.0 mm	140.0 mm	33.0 mm	97.5 kN	60.0 kN	10000 r/min	C4
6314/C3VL0241	70.0 mm	150.0 mm	35.0 mm	111.0 kN	68.0 kN	9500.0 r/min	C3
6314/C3VL2071	70.0 mm	150.0 mm	35.0 mm	111.0 kN	68.0 kN	9500.0 r/min	C3
6314M/C3VL0241	70.0 mm	150.0 mm	35.0 mm	104.0 kN	68.0 kN	9500.0 r/min	C3
6314M/C4VL0241	70.0 mm	150.0 mm	35.0 mm	104.0 kN	68.0 kN	9500.0 r/min	C4
6315/C3VL0241	75.0 mm	160.0 mm	37.0 mm	119.0 kN	76.5 kN	9000.0 r/min	C3
6315M/C3VL0241	75.0 mm	160.0 mm	37.0 mm	119.0 kN	76.5 kN	9000.0 r/min	C3
6315M/C4VL0241	75.0 mm	160.0 mm	37.0 mm	119.0 kN	76.5 kN	9000.0 r/min	C4
6315-Z/C3VL0241	75.0 mm	160.0 mm	37.0 mm	119.0 kN	76.5 kN	9000.0 r/min	C3
6316/C3VL0241	80.0 mm	170.0 mm	39.0 mm	130.0 kN	86.5 kN	8500.0 r/min	C3
6316/C3VL2071	80.0 mm	170.0 mm	39.0 mm	130.0 kN	86.5 kN	8500.0 r/min	C3
6316M/C3VL0241	80.0 mm	170.0 mm	39.0 mm	130.0 kN	86.5 kN	8500.0 r/min	C3
6316M/C4VL0241	80.0 mm	170.0 mm	39.0 mm	130.0 kN	86.5 kN	8500.0 r/min	C4
6317/C3VL0241	85.0 mm	180.0 mm	41.0 mm	140.0 kN	96.5 kN	8000.0 r/min	C3
6317/C3VL2071	85.0 mm	180.0 mm	41.0 mm	140.0 kN	96.5 kN	8000.0 r/min	C3
6317/C4VL0241	85.0 mm	180.0 mm	41.0 mm	140.0 kN	96.5 kN	8000.0 r/min	C4
6317M/C3VL0241	85.0 mm	180.0 mm	41.0 mm	140.0 kN	96.5 kN	8000.0 r/min	C3
6317M/C4VL0241	85.0 mm	180.0 mm	41.0 mm	140.0 kN	96.5 kN	8000.0 r/min	C4
6318/C3VL0241	90.0 mm	190.0 mm	43.0 mm	151.0 kN	108.0 kN	7500.0 r/min	C3
6318/C3VL2071	90.0 mm	190.0 mm	43.0 mm	151.0 kN	108.0 kN	7500.0 r/min	C3
6318M/C3VL0241	90.0 mm	190.0 mm	43.0 mm	151.0 kN	108.0 kN	7500.0 r/min	C3
6318M/C4VL0241	90.0 mm	190.0 mm	43.0 mm	151.0 kN	108.0 kN	7500.0 r/min	C4
6319/C3VL0241	95.0 mm	200.0 mm	45.0 mm	159.0 kN	118.0 kN	7000.0 r/min	C3
6319M/C3VL0241	95.0 mm	200.0 mm	45.0 mm	159.0 kN	118.0 kN	7000.0 r/min	C3
6319M/C4VL0241	95.0 mm	200.0 mm	45.0 mm	159.0 kN	118.0 kN	7000.0 r/min	C4
6320/C3VL0241	100.0 mm	215.0 mm	47.0 mm	182.0 kN	140.0 kN	6700.0 r/min	C3
6320/C3VL2071	100.0 mm	215.0 mm	47.0 mm	182.0 kN	140.0 kN	6700.0 r/min	C3
6320/C4VL0241	100.0 mm	215.0 mm	47.0 mm	182.0 kN	140.0 kN	6700.0 r/min	C4
6320M/C3VL0241	100.0 mm	215.0 mm	47.0 mm	182.0 kN	140.0 kN	6700.0 r/min	C3
6321M/C3VL0241	105.0 mm	225.0 mm	49.0 mm	195.0 kN	153.0 kN	6300.0 r/min	C3
6322/C3VL0241	110.0 mm	240.0 mm	50.0 mm	216.0 kN	180.0 kN	6000.0 r/min	C3
6322M/C3VL0241	110.0 mm	240.0 mm	50.0 mm	216.0 kN	180.0 kN	6000.0 r/min	C3
6322M/C4VL0241	110.0 mm	240.0 mm	50.0 mm	216.0 kN	180.0 kN	6000.0 r/min	C4
6324/C3VL0241	120.0 mm	260.0 mm	55.0 mm	216.0 kN	186.0 kN	5600.0 r/min	C3
6324/C3VL2071	120.0 mm	260.0 mm	55.0 mm	216.0 kN	186.0 kN	5600.0 r/min	C3
6324/C4VL2071	120.0 mm	260.0 mm	55.0 mm	216.0 kN	186.0 kN	5600.0 r/min	C4
6324M/C3VL0241	120.0 mm	260.0 mm	55.0 mm	216.0 kN	186.0 kN	5600.0 r/min	C3
6324M/C3VL2071	120.0 mm	260.0 mm	55.0 mm	216.0 kN	186.0 kN	5600.0 r/min	C3
6324M/C4VL0241	120.0 mm	260.0 mm	55.0 mm	216.0 kN	186.0 kN	5600.0 r/min	C4
6326/C3VL0241	130.0 mm	280.0 mm	58.0 mm	229.0 kN	216.0 kN	5000.0 r/min	C3
6326/C3VL2071	130.0 mm	280.0 mm	58.0 mm	229.0 kN	216.0 kN	5000.0 r/min	C3
6326M/C3VL0241	130.0 mm	280.0 mm	58.0 mm	229.0 kN	216.0 kN	5000.0 r/min	C3
6326M/C3VL2071	130.0 mm	280.0 mm	58.0 mm	229.0 kN	216.0 kN	5000.0 r/min	C3
6326M/C4VL0241	130.0 mm	280.0 mm	58.0 mm	229.0 kN	216.0 kN	5000.0 r/min	C4
6328/C3VL2071	140.0 mm	300.0 mm	62.0 mm	265.0 kN	245.0 kN	4800.0 r/min	C3
6328M/C3VL0241	140.0 mm	300.0 mm	62.0 mm	265.0 kN	245.0 kN	4800.0 r/min	C3
6328M/C3VL2071	140.0 mm	300.0 mm	62.0 mm	265.0 kN	245.0 kN	4800.0 r/min	C3
6328M/C4VL0241	140.0 mm	300.0 mm	62.0 mm	265.0 kN	245.0 kN	4800.0 r/min	C4
6328M/C4VL2071	140.0 mm	300.0 mm	62.0 mm	265.0 kN	245.0 kN	4800.0 r/min	C4
6330/C3VL2071	150.0 mm	320.0 mm	65.0 mm	286.0 kN	285.0 kN	4300.0 r/min	C3
6330M/C3VL0241	150.0 mm	320.0 mm	65.0 mm	286.0 kN	285.0 kN	4300.0 r/min	C3
6330M/C3VL2071	150.0 mm	320.0 mm	65.0 mm	286.0 kN	285.0 kN	4300.0 r/min	C3
6330M/C4VL0241	150.0 mm	320.0 mm	65.0 mm	286.0 kN	285.0 kN	4300.0 r/min	C4
6330M/C4VL2071	150.0 mm	320.0 mm	65.0 mm	286.0 kN	285.0 kN	4300.0 r/min	C4
6332M/C3VL0241	160.0 mm	340.0 mm	68.0 mm	276.0 kN	285.0 kN	4000.0 r/min	C3
6332M/C3VL2071	160.0 mm	340.0 mm	68.0 mm	291.0 kN	285.0 kN	4000.0 r/min	C3
6332M/C4VL2071	160.0 mm	340.0 mm	68.0 mm	291.0 kN	285.0 kN	4000.0 r/min	C4
6334M/C3VL0241	170.0 mm	360.0 mm	72.0 mm	325.0 kN	365.0 kN	3200 r/min	C3
6334M/C3VL2071	170.0 mm	360.0 mm	72.0 mm	325.0 kN	365.0 kN	3200 r/min	C3
6334M/C4VL0241	170.0 mm	360.0 mm	72.0 mm	325.0 kN	365.0 kN	3200 r/min	C4
6334M/C4VL2071	170.0 mm	360.0 mm	72.0 mm	325.0 kN	365.0 kN	3200 r/min	C4
6336M/C3VL0241	180.0 mm	380.0 mm	75.0 mm	355.0 kN	405.0 kN	3000 r/min	C3
6336M/C3VL2071	180.0 mm	380.0 mm	75.0 mm	355.0 kN	405.0 kN	3000 r/min	C3
6336M/C4VL0241	180.0 mm	380.0 mm	75.0 mm	355.0 kN	405.0 kN	3000 r/min	C4
6336M/C4VL2071	180.0 mm	380.0 mm	75.0 mm	355.0 kN	405.0 kN	3000 r/min	C4
6338M/C3VL0241	190.0 mm	400.0 mm	78.0 mm	380.0 kN	455.0 kN	2850 r/min	C3
6338M/C3VL2071	190.0 mm	400.0 mm	78.0 mm	380.0 kN	455.0 kN	2850 r/min	C3
6338M/C4VL2071	190.0 mm	400.0 mm	78.0 mm	380.0 kN	455.0 kN	2850 r/min	C4
6344M/C3VL0241	220.0 mm	460.0 mm	88.0 mm	440.0 kN	560.0 kN	2460 r/min	C3

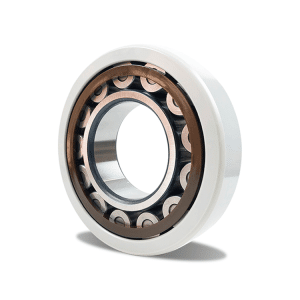

SKF Insulated Cylindrical Roller Bearings

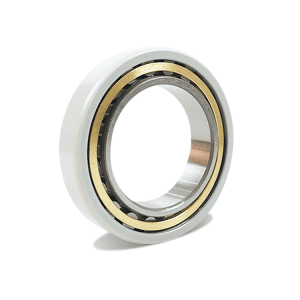

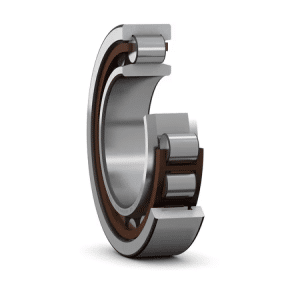

10 Series Insulated Bearings Sizes

Special feature of this series

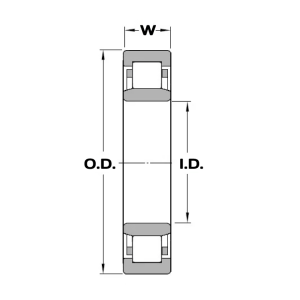

Main dimensions according to ISO 15 (DIN 5412-1). Roller bearings of the extra-light 10 series are designed to support high radial loads despite their extremely low weight and minimal cross-section. Compared to cylindrical roller bearings of the 03 medium series with the same inside diameter, they require significantly less installation space, weigh substantially less, and permit the highest speeds.

Model	Bore Diameter	Outside Diameter	Width	Basic Dynamic Load Rating	Basic Static Load Rating	Reference Speed	Radial Internal Clearance
NU 1030 M/C3VL2071	150 mm	225 mm	35 mm	194.0 kN	275.0 kN	3200.0r/min	C3
NU 1028 M/C3VL2071	140 mm	210 mm	33 mm	179.0 kN	255.0 kN	3600.0r/min	C3
NU 1026 M/C3VL2071	130 mm	200 mm	33 mm	165.0 kN	232.0 kN	3800.0r/min	C3
NU 1024 M/C3VL2071	120 mm	180 mm	28 mm	138.0 kN	190.0 kN	4000.0r/min	C3
NU 1022 M/C3VL0241	110 mm	170 mm	28 mm	130.0 kN	173.0 kN	4500.0r/min	C3
NU 1022 M/C3VA3091	110.0 mm	170.0 mm	28.0 mm	130.0 kN	173.0 kN	4500.0r/min	C3
NU 1020 M/C3VL0241	100 mm	150 mm	24 mm	89.7 kN	122.0 kN	5000.0r/min	C3
NU 1019 ML/C3VL0241	95 mm	145 mm	24 mm	88.0 kN	116.0 kN	5300.0r/min	C3
NU 1018 M/C4VA3091	90 mm	140 mm	24 mm	85.8 kN	110.0 kN	5600.0r/min	C4
NU 1018 M/C3VL0241	90 mm	140 mm	24 mm	85.8 kN	110.0 kN	5600.0r/min	C3
NU 1017 M/C3VL0241	85 mm	130 mm	22 mm	72.1 kN	91.5 kN	6000.0r/min	C3
NU 1016 ECM/C3VL0241	80 mm	125 mm	22 mm	99.0 kN	127.0 kN	6000.0r/min	C3
NU 1015 M/C3VL0241	75 mm	115 mm	20 mm	58.3 kN	71.0 kN	6700.0r/min	C3
NU 1014 ECP/C3VL0241	70 mm	110 mm	20 mm	76.5 kN	93.0 kN	7000.0r/min	C3
NU 1014 ECM/C3VL0241	70 mm	110 mm	20 mm	70.4 kN	85.0 kN	7000.0r/min	C3
NU 1013 ECP/C3VL0241	65 mm	100 mm	18 mm	62.7 kN	81.5 kN	7500.0r/min	C3
NU 1012 ML/C3VL0241	60 mm	95 mm	18 mm	38.0 kN	45.5 kN	8000.0r/min	C3
NU 1012 ECP/C3VL0241	60 mm	95 mm	18 mm	58.3 kN	73.5 kN	8000.0r/min	C3
NU 1011 ECP/C3VL0241	55 mm	90 mm	18 mm	57.2 kN	69.5 kN	8500.0r/min	C3
NU 1011 ECML/C3VL0241	55 mm	90 mm	18 mm	57.2 kN	69.5 kN	8500.0r/min	C3
NU 1010 ECP/C3VL0241	50 mm	80 mm	16 mm	47.3 kN	57.0 kN	9500.0r/min	C3

02 Series Insulated Bearings Sizes

Special feature of this series

Main dimensions according to ISO 15 (DIN 5412-1). As the most widely used light series, cylindrical roller bearings of the 02 series offer an excellent balance between good radial load capacity and high-speed capability. Compared to the more robust 03 medium series with the same inside diameter, they take up less radial installation space, are lighter, and permit higher speeds. This makes them the standard choice for numerous general industrial applications.

Model	Bore Diameter	Outside Diameter	Width	Basic Dynamic Load Rating	Basic Static Load Rating	Reference Speed	Radial Internal Clearance
NU 230 ECM/C3VL2071	150 mm	270 mm	45 mm	457.0 kN	610.0 kN	2400.0r/min	C3
NU 228 ECM/C3VL2071	140 mm	250 mm	42 mm	396.0 kN	520.0 kN	3200.0r/min	C3
NU 226 ECM/C3VL2071	130 mm	230 mm	40 mm	369.0 kN	465.0 kN	2800.0r/min	C3
NU 224 ECM/C3VL0241	120 mm	215 mm	40 mm	341.0 kN	440.0 kN	3000.0r/min	C3
NU 222 ECM/C3VL0241	110 mm	200 mm	38 mm	297.0 kN	375.0 kN	3400.0r/min	C3
NU 220 ECM/C3VL0241	100 mm	180 mm	34 mm	251.0 kN	305.0 kN	3800.0r/min	C3
NU 219 ECM/C3VL0241	95 mm	170 mm	32 mm	224.0 kN	270.0 kN	4000.0r/min	C3
NU 218 ECM/C3VL0241	90 mm	160 mm	30 mm	187.0 kN	224.0 kN	4300.0r/min	C3
NU 217 ECM/C3VL0241	85 mm	150 mm	28 mm	168.0 kN	200.0 kN	4500.0r/min	C3
NU 216 ECM/C3VL0241	80 mm	140 mm	26 mm	142.0 kN	173.0 kN	4800.0r/min	C3
NU 215 ECM/C3VL0241	75 mm	130 mm	25 mm	132.0 kN	160.0 kN	5300.0r/min	C3
NU 214 ECM/C3VL0241	70 mm	125 mm	24 mm	121.0 kN	140.0 kN	5300.0r/min	C3
NU 213 ECM/C3VL0241	65 mm	120 mm	23 mm	110.0 kN	122.0 kN	5600.0r/min	C3
NU 212 ECM/C3VL0241	60 mm	110 mm	22 mm	96.8 kN	106.0 kN	6700.0r/min	C3
NU 211 ECM/C3VL0241	55 mm	100 mm	21 mm	85.0 kN	100.0 kN	7000.0r/min	C3
NU 210 ECM/C3VL0241	50 mm	90 mm	20 mm	66.0 kN	72.0 kN	7500.0r/min	C3
NU 210 ECM/C3HVA3091	50.0 mm	90.0 mm	20.0 mm	69.5 kN	73.5 kN	8500.0r/min	C3H

03 Series Insulated Bearings Sizes

Special feature of this series

Main dimensions according to ISO 15 (DIN 5412-1). Roller bearings of the 03 medium series are specifically designed for applications involving high to heavy radial loads and requiring high rigidity. Compared to the 02 light series with the same inside diameter, their larger cross-section and more substantial rollers provide a significantly higher radial load capacity and superior rigidity.

Model	Bore Diameter	Outside Diameter	Width	Basic Dynamic Load Rating	Basic Static Load Rating	Reference Speed	Radial Internal Clearance
NU 330 ECM/C3VL2071	150 mm	320 mm	65 mm	765.0 kN	950.0 kN	2000.0r/min	C3
NU 328 ECM/C3VL2071	140 mm	300 mm	62 mm	682.0 kN	830.0 kN	2200.0r/min	C3
NU 326 ECM/C3VL2071	130 mm	280 mm	58 mm	627.0 kN	750.0 kN	2200.0r/min	C3
NU 324 ECM/C3VL0241	120 mm	260 mm	55 mm	539.0 kN	620.0 kN	2400.0r/min	C3
NU 322 ECM/C3VL0241	110 mm	240 mm	50 mm	468.0 kN	540.0 kN	2600.0r/min	C3
NU 320 ECM/C3VL0241	100 mm	215 mm	47 mm	391.0 kN	440.0 kN	3000.0r/min	C3
NU 319 ECM/C3VL0241	95 mm	200 mm	45 mm	341.0 kN	390.0 kN	3200.0r/min	C3
NU 318 ECM/C3VL0241	90 mm	190 mm	43 mm	319.0 kN	360.0 kN	3400.0r/min	C3
NU 317 ECM/C3VL0241	85 mm	180 mm	41 mm	297.0 kN	340.0 kN	3600.0r/min	C3
NU 316 ECM/C3VL0241	80 mm	170 mm	39 mm	264.0 kN	290.0 kN	3800.0r/min	C3
NU 315 ECP/VL0241	75 mm	160 mm	37 mm	242.0 kN	270.0 kN	4000.0r/min	C3
NU 315 ECM/C3VL0241	75 mm	160 mm	37 mm	242.0 kN	270.0 kN	4000.0r/min	C3
NU 314 ECM/C3VL0241	70 mm	150 mm	35 mm	209.0 kN	228.0 kN	4300.0r/min	C3
NU 313 ECM/C3VL0241	65 mm	140 mm	33 mm	183.0 kN	196.0 kN	4800.0r/min	C3
NU 312 ECM/C3VL0241	60 mm	130 mm	31 mm	151.0 kN	160.0 kN	5000.0r/min	C3
NU 311 ECM/C3VL0241	55 mm	120 mm	29 mm	138.0 kN	146.0 kN	5600.0r/min	C3
NU 310 ECM/C3VL0241	50 mm	110 mm	27 mm	112.0 kN	116.0 kN	6000.0r/min	C3

SKF Insulated Bearings Sizes

Quick search

Deep Groove Ball Bearing:

Cylindrical Roller Bearing:

SKF Insulated Deep Groove Ball Bearings

6000 Series Insulated Bearings Sizes

6200 Series Insulated Bearings Sizes

Special feature of this series

6300 Series Insulated Bearings Sizes

Special feature of this series

SKF Insulated Cylindrical Roller Bearings

10 Series Insulated Bearings Sizes

Special feature of this series

02 Series Insulated Bearings Sizes

Special feature of this series

03 Series Insulated Bearings Sizes

Special feature of this series

Get a Free Custom Solution & Quote Now !

About

Products

Menu

弹窗表单

SKF Insulated Bearings Sizes

Quick search

Deep Groove Ball Bearing:

Cylindrical Roller Bearing:

SKF Insulated Deep Groove Ball Bearings

6000 Series Insulated Bearings Sizes

6200 Series Insulated Bearings Sizes

Special feature of this series

6300 Series Insulated Bearings Sizes

Special feature of this series

SKF Insulated Cylindrical Roller Bearings

10 Series Insulated Bearings Sizes

Special feature of this series

02 Series Insulated Bearings Sizes

Special feature of this series

03 Series Insulated Bearings Sizes

Special feature of this series

Get a Free Custom Solution & Quote Now !

About

Products

Menu

Need a Reliable Technical Solution?

Get a Free Custom Solution & Quote

弹窗表单
