Bearings are fundamental components in various machinery, enabling smooth, efficient shaft rotation. The choice of bearing type significantly impacts the performance, durability, and overall cost-efficiency of machines. Among the most popular bearing types today are ceramic, hybrid, and insulated bearings. Each offers unique advantages suited to different applications and environments. This comprehensive guide explores the distinctions, applications, benefits, and limitations of these bearings to help you select the best option for your specific industrial needs.

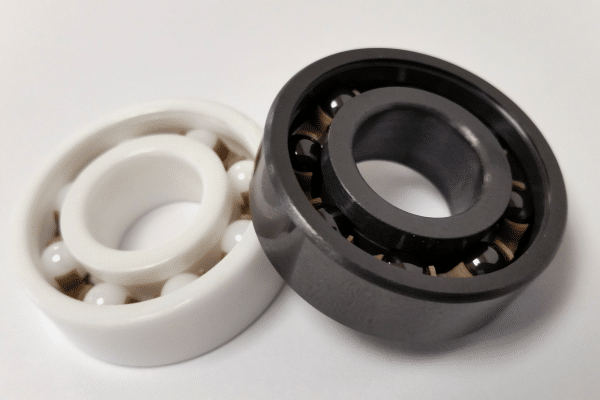

What Are Ceramic Bearings?
Ceramic bearings are primarily made from ceramic materials, mainly silicon nitride (Si3N4), for the balls, with some bearings also using ceramic for the rings. There are two main types: full-ceramic bearings, in which both the balls and the rings are ceramic, and ceramic ball bearings, which combine steel rings with ceramic balls.
Key Properties
- High hardness and wear resistance: Ceramic balls are much harder than steel, resulting in superior wear resistance and longer life span.
- Low friction: The smooth and hard ceramic surfaces significantly reduce the coefficient of friction, which lowers heat generation and increases efficiency.
- Non-conductive: Ceramics provide excellent electrical insulation, protecting bearings in machinery exposed to stray currents.
- Corrosion resistance: Ceramic materials resist oxidation and corrosion better than steel, making them suitable for harsh environments.
- Lightweight: Ceramics are less dense than steel, reducing centrifugal forces at high speeds, which helps maintain precision and stability under rapid rotation.
Applications
Ceramic bearings excel in high-speed, high-precision, and high-temperature applications such as aerospace, motorsport, machine tools, and high-tech electronics, where performance and durability are critical.

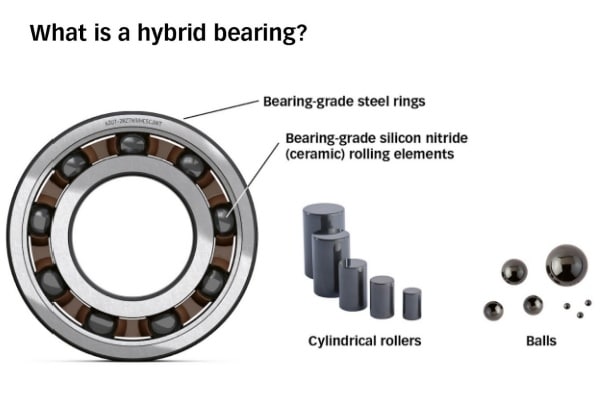

What Are Hybrid Bearings?
Hybrid bearings combine steel rings with ceramic balls as the rolling elements, offering a balance between steel bearings and full ceramic ones.
Key Properties
- Electrical insulation: Ceramic balls prevent electrical discharge damage inside the bearing.
- Reduced friction: Ceramic balls lower the friction over steel-only bearings.
- Better heat resistance: They perform better in high-temperature environments than full steel.
- Longer service life: Hybrid bearings generally last longer than standard steel bearings due to reduced wear and heat generation.
Applications
Suitable for electric motors, generators, and demanding industrial machinery requiring electrical insulation with high speed and durability.

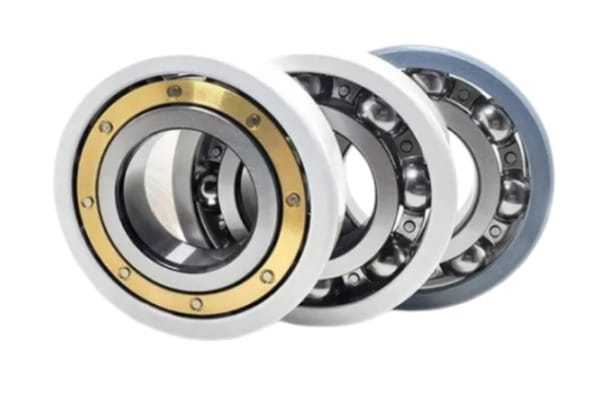

What Are Insulated Bearings?
Insulated bearings have a special electrical insulation coating-typically a ceramic coating-applied to the bearing rings (inner or outer). This coating blocks electrical current flow, protecting the bearing from electrical erosion caused by currents in motor shafts.
Key Properties
- Electrical isolation: The insulation coatings can typically withstand voltages up to 1000V or more, effectively preventing stray currents from damaging the bearing.
- Mechanical integrity: The main bearing structure remains steel, preserving strength and durability under load.
- Standard dimensions: Insulated bearings maintain standard dimensions, allowing easy replacement without redesign.
- Cost-effective: Generally, more affordable than full ceramic or hybrid bearings while still offering excellent electrical protection.
Applications
Primarily used in electric motors with variable frequency drives (VFDs), generators, pumps, HVAC equipment, and other high-voltage electrical applications.

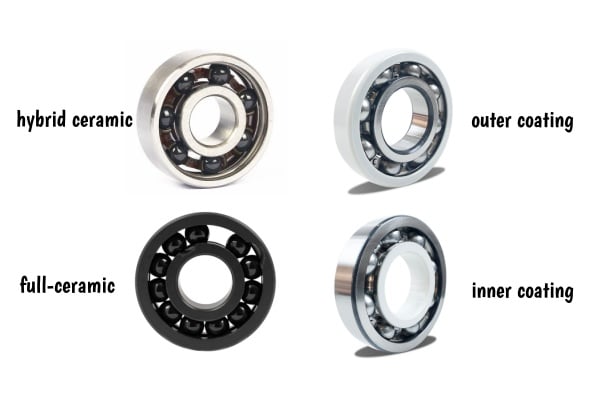

Comparison Table: Ceramic vs Hybrid vs Insulated Bearings
| Feature | Ceramic Bearings | Hybrid Bearings | Insulated Bearings |
| Material | Ceramic balls and sometimes ceramic rings | Ceramic balls + steel rings | Steel bearings with ceramic insulation coating |
| Electrical insulation | Yes, inherent to ceramic balls and rings | Yes, ceramic balls provide insulation | Yes, via an insulating coating |
| Friction coefficient | Very low | Low | Similar to steel bearings |
| Wear resistance | High | Moderate to high | Moderate, coating adds protection |
| Speed capability | Best for high-speed applications | High-speed capable | Suitable for medium-speed applications |
| Corrosion resistance | Excellent | Good | Good with additional coating protection |
| Mechanical strength | High but ceramic is brittle | Strong steel rings + tough balls | Steel strength with protective coating |
| Cost | Highest | Moderate | More affordable than ceramic/hybrid |
| Application examples | Aerospace, motorsport, and machine tools | Electric motors, industrial machinery | Motors with VFDs, HVAC, pumps |
Which Bearing Should You Choose?
When to Choose Ceramic Bearings
- When operating under high-speed, precision, and high-temperature conditions.
- In applications with exposure to corrosive or chemically aggressive environments.
- When electrical insulation throughout the bearing is crucial for preventing current damage.
- For industries where maximum wear resistance and low friction are necessary despite a higher cost.
When to Choose Hybrid Bearings
- When requiring the insulation benefits of ceramics but at a moderate cost.
- For electric motors and machinery operating at high speeds and temperatures.
- When longer service life and reduced maintenance are priorities.
- Suitable for environments where shock resistance combined with enhanced durability is needed.
When to Choose Insulated Bearings
- For motors equipped with VFDs or inverter drives prone to electrical current damage.
- When working on cost-sensitive projects that require reliable electrical isolation.
- In situations needing a hassle-free, direct-fit replacement for conventional steel bearings.
- For applications where robust mechanical strength combined with efficient insulation is essential.
