Electrical Protection: Breakdown voltage up to 3000V. Blocks stray currents to prevent electrical corrosion.
Electric Motor Replacement: Reliable insulated bearing options for electric motor repair and replacement projects.
Insulated Bearing Supplier: Supply support for electric motor, VFD motor, and MRO replacement needs.
Reliable Quality: Compliant with ISO 9001 and REACH standards. The production process is fully traceable.

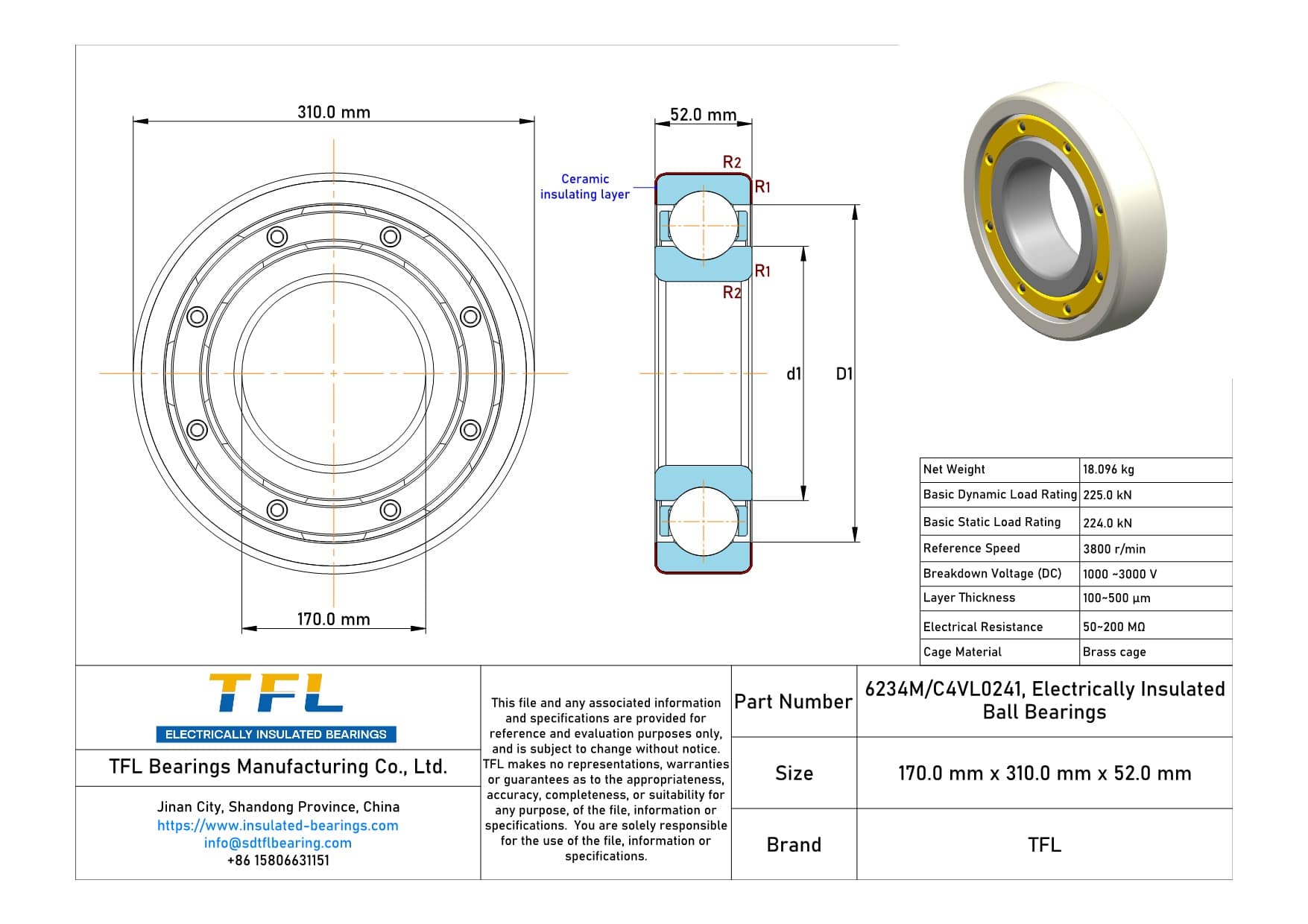

TFL 6234M/C4VL0241 has an interchange basis with corresponding SKF and FAG models through its 170 × 310 × 52 mm boundary dimensions, C4 clearance, and outer-ring insulation structure. It can be reviewed through an INSOCOAT equivalent chart or SKF/FAG interchange list. VL0241 and J20AA generally indicate outer-ring insulated types, while the C4 suffix should be checked against the original clearance requirement. Buyers should not judge replacement only from the base designation 6234M; the complete suffix, fit arrangement, temperature rise, load, and speed should also be confirmed. TFL can support direct replacement review using the original bearing photo, complete model number, and equipment information.
| SKF | FAG |
|---|---|
| 6234M/C4VL0241 | 6234-M-J20AA-C4 |
TFL supports industrial buyers, motor repair teams, and distributors with insulated bearing model consolidation, interchange confirmation, and pre-shipment checking. For large C4 clearance outer-ring insulated bearings such as 6234M/C4VL0241, we focus on the 170 × 310 × 52 mm dimensions, VL0241 insulation location, C4 clearance, brass cage, and the complete original suffix to reduce selection errors in replacement purchasing. TFL supports No MOQ, small maintenance orders, volume purchasing, OEM/ODM, and consolidated shipment of multiple bearing models for large motor repair, project sourcing, and alternative-brand supply. The listed ROHS and REACH status is Compliant; specific document requirements can be confirmed at the RFQ or order stage.
Outer-ring insulation VL0241 — ceramic-coated outer ring for electrical current isolation.
C4 radial internal clearance — suitable for higher temperature-rise or tighter-fit motor positions.
Brass cage — suitable for large industrial motor, generator, and heavy-duty drive applications.
TFL 6234M/C4VL0241 electrically insulated deep groove ball bearing is suitable for large inverter motors, industrial motors, generators, industrial pump motors, fan motors, and heavy-duty drive systems. Its VL0241 outer-ring insulation helps interrupt current paths between the housing and bearing outer ring, reducing electrical erosion and fluting risk under inverter-driven operation. C4 clearance is better suited to motor bearing positions with higher temperature rise, tighter fits, or original-machine requirements for greater internal clearance allowance. Final application should be checked against the original bearing suffix, insulation location, fits, temperature rise, load, and speed.
TFL electrically insulated deep groove ball bearings can be considered for large inverter motor equipment types, including Siemens 1LE0001 and ABB M3BP series. In these motors, inverter-driven operation may generate shaft currents and cause electrical erosion or fluting on bearing raceways. With VL0241 outer-ring alumina ceramic insulation and C4 clearance, 6234M/C4VL0241 is a replacement candidate for SKF INSOCOAT VL0241 and FAG J20AA-C4 types where outer-ring insulation and higher temperature-rise allowance are specified. This is an application-type reference, not an installed case.
TFL 6234M/C4VL0241 can be considered for motor bearing positions in industrial pump equipment types such as Grundfos CR multistage pumps and KSB Eta centrifugal pumps. Under continuous operation, variable-speed control, and higher temperature rise, pump motors may face shaft current, electrical erosion, lubricant deterioration, and abnormal vibration. The outer-ring insulation coating of 6234M/C4VL0241 helps interrupt current paths, while C4 clearance and the brass cage support maintenance replacement review in large pump motor positions requiring greater internal clearance allowance. This is an application-type reference, not an installed case.
TFL electrically insulated bearings, such as 6234M/C4VL0241, can be considered for generator bearing positions in wind turbine generators exposed to shaft current, electrical erosion, or high-humidity operating conditions, including equipment types such as Vestas V90, Goldwind GW121/2500, and Siemens Gamesa 2.3 MW turbines. Wind turbine generators operate under variable speed, vibration, humidity, and fluctuating load conditions, so insulation location, clearance class, and cage structure should be checked carefully. With VL0241 outer-ring insulation, C4 clearance, and a brass cage, 6234M/C4VL0241 is a candidate for wind turbine generator bearing replacement review, especially where the original machine requires outer-ring insulation and greater thermal expansion allowance. This is an application-type reference, not an installed case.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
