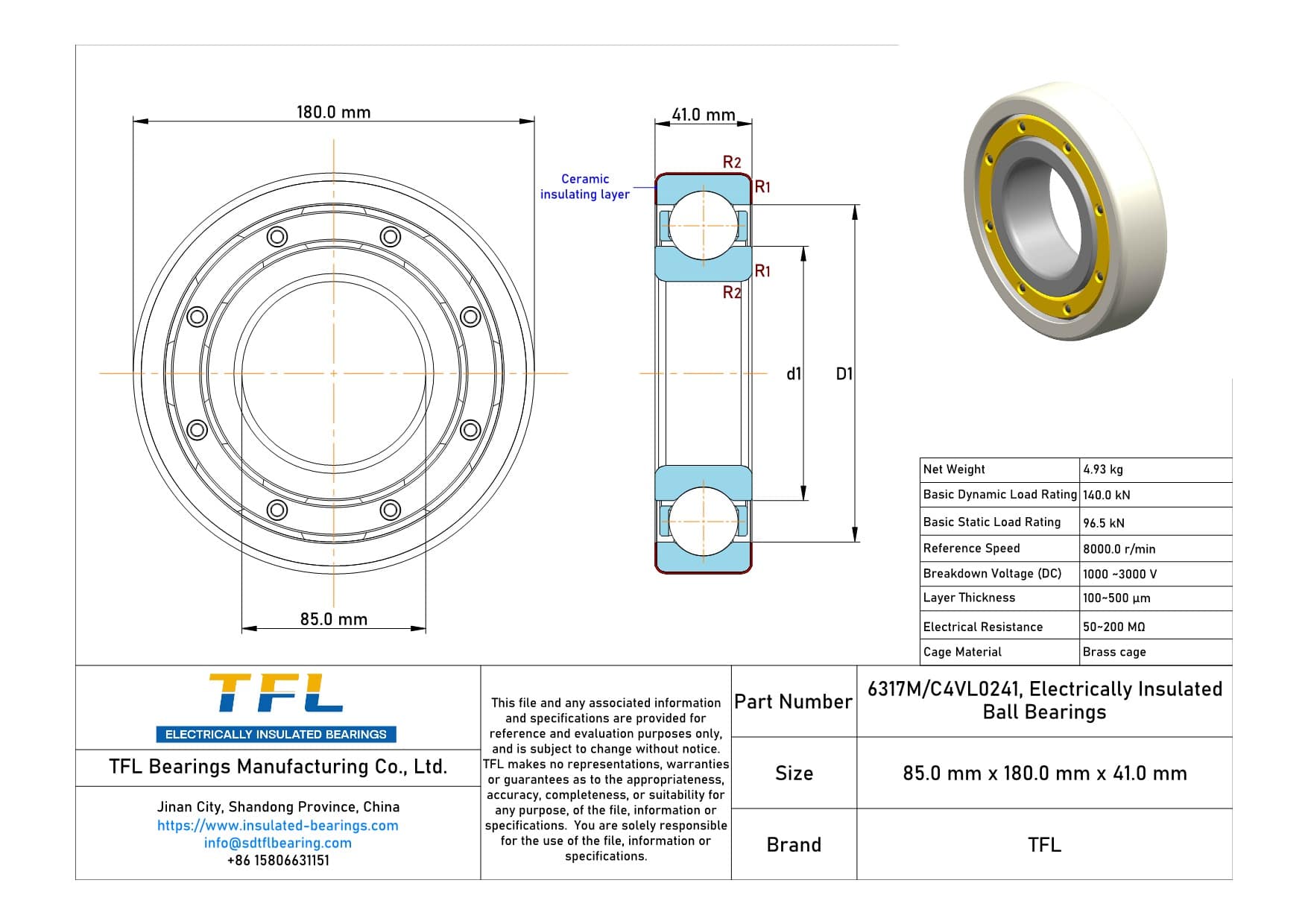

Machined Brass Cage (M): Provides exceptional stability and reduced friction, ideal for high-vibration and high-speed motor applications.
Superior Dielectric Strength: The VL0241 ceramic coating effectively blocks stray currents up to 3000V DC to prevent electrical erosion.
Drop-in Interchangeability: Fully compatible with premium equivalents such as SKF 6317 M/C4VL0241, FAG 6317-M-C4-J20AA, and NKE 6317-M-C4-SQ77, matching all critical ISO dimensions and performance specs.
C4 Radial Clearance: Optimized for high-temperature environments where significant thermal expansion of the shaft occurs.
The 6317M/C4VL0241 is a specialized component often subject to long factory lead times from Tier 1 brands due to its specific combination of brass cage and C4 clearance. TFL addresses this supply chain bottleneck by offering a high-performance alternative that is functionally identical to SKF, FAG, and NTN equivalents but readily available. Procurement professionals benefit from TFL’s streamlined manufacturing process which delivers this heavy-duty specification without the premium pricing, supported by flexible MOQs and rapid global logistics to minimize downtime in critical heavy industries.
| TFL | SKF | FAG | NKE | NSK | NTN |
|---|---|---|---|---|---|
| 6317M/C4VL0241 | 6317M/C4VL0241 | 6317-M-J20AA-C4 | 6317-M-C4-SQ77 | 6317HDY2C3 | 7MC3-6317C3 |
Choosing TFL for the 6317M/C4VL0241 ensures access to specialized manufacturing expertise in plasma-sprayed ceramic insulation. TFL focuses on the synergy between material science and mechanical precision, ensuring the machined brass cage is perfectly balanced for high-RPM stability while the VL0241 coating maintains its dielectric integrity under thermal stress. As a reliable B2B partner, TFL provides rigorous quality control that mirrors international standards, offering global industries a dependable source for critical motor protection components that balance cost and performance perfectly.

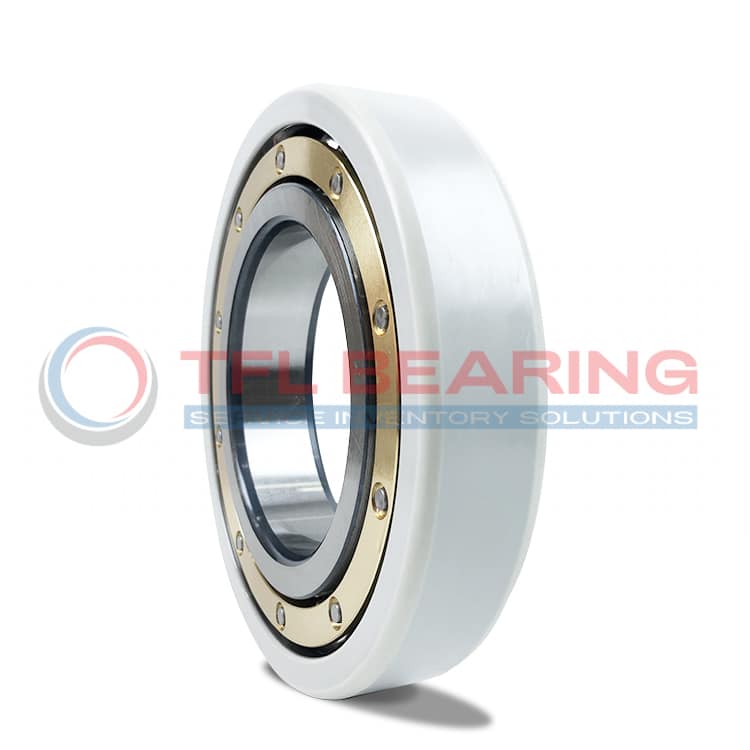

High-Stability Brass Cage: The machined brass cage (M) effectively handles acceleration and deceleration forces, reducing friction and wear in high-speed or oscillating applications.
C4 Thermal Clearance: The internal gap is significantly looser than C3, allowing for substantial thermal expansion of the inner ring without loss of performance or risk of seizing.
3000V+ Electrical Protection: The ceramic oxide coating on the outer ring acts as a shield against stray currents commonly generated by high-power VFDs used in heavy industry.
The 6317M/C4VL0241 is critical for large-scale electrical machinery where heat, vibration, and stray currents coexist. While TFL also provides the 6317/C3VL2071 for inner-ring insulation, the C4 brass cage outer-ring version is the standard for high-demand industrial scenarios.
Large ID fans in cement production (e.g., systems by FLSmidth) move extremely hot gases. The heat transfers down the shaft to the motor bearing, necessitating C4 clearance. Simultaneously, the massive inertia of the fan creates high starting loads and potential vibration, requiring a strong brass cage. TFL 6317M/C4VL0241 insulated bearings are used to protect the Variable Speed Drive (VSD) controlled motors from electrical fluting while physically surviving the thermal and mechanical stress.
For wind turbines located in desert environments (e.g., Siemens Gamesa turbines in the Middle East), the ambient temperature inside the nacelle can be extreme. The generator bearings require C4 clearance to accommodate the thermal expansion. Additionally, the variable wind loads put stress on the cage, making the "M" brass cage preferable. The TFL 6317M/C4VL0241 protects these costly generators from grid-induced stray currents and lightning discharge paths.
Traction motors in freight locomotives operate under punishing conditions: high heat generated by heavy hauling and constant vibration from the tracks. Manufacturers like Alstom or CRRC often specify bearings with both C4 clearance (to handle the heat) and brass cages (to survive the vibration). The TFL 6317M/C4VL0241 is a critical spare part here, preventing electrical discharge from the traction inverter while ensuring the bearing doesn’t seize during long, hot hauls across varying climates.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
