Electrical Protection: Breakdown voltage up to 3000V. Blocks stray currents to prevent electrical corrosion.
Reliable Quality: Compliant with ISO 9001 and REACH standards. The production process is fully traceable.
Interchangeable: Compatible with SKF/FAG/NKE/NSK/NTN models for a perfect replacement.
Variety of Types: Both C3/C4 and brass retainers, stamped steel retainers, are available for selection.

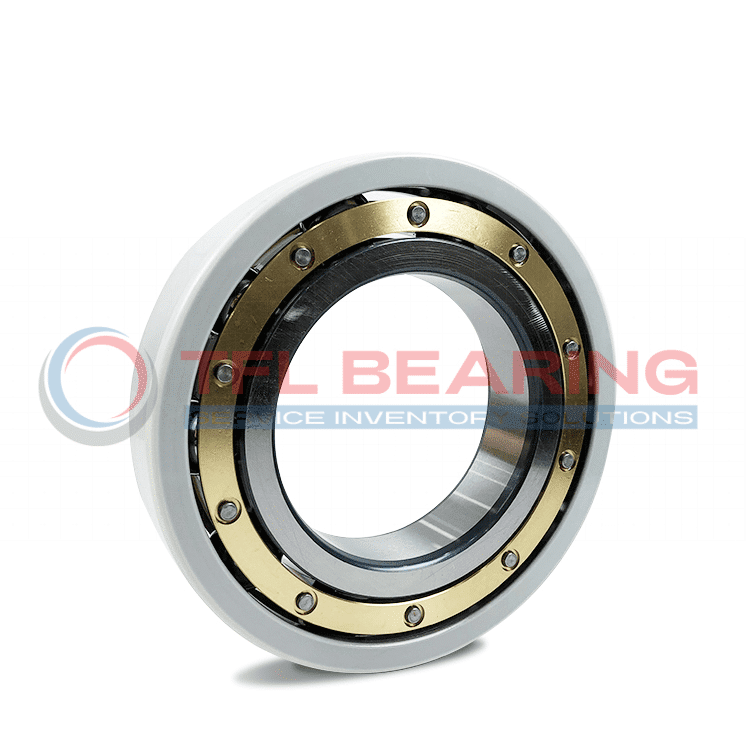

TFL 6322M/C4VL0241 perfectly achieves direct replacement for equivalent insulated bearings from international brands like SKF and FAG in terms of dimensions (110x240x50mm), cage design, and C4 clearance standards. All delivered products pass 100% dielectric and dimensional precision testing, ensuring “plug-and-play” installation and reliable lifespan in complex, high-heat, and high-impact VFD systems across paper, metallurgy, and mining industries.
| SKF | FAG | NKE | NSK | NTN |
|---|---|---|---|---|
|
6322M/C4VL0241
|
6322-M-J20AA-C4
|
6322-M-C4-SQ77
|
6322HDY2C3
|
7MC3-6322L1BC3
|
Meeting the demanding requirements of 110mm heavy-duty insulated bearings (which must simultaneously feature C4 extra-large clearance, brass cages, and anti-erosion coatings) is no small feat. Relying on a robust premium power transmission supply chain and an ISO 9001 certified quality control system, TFL seamlessly integrates imported high-purity alumina plasma spraying processes with heavy-duty mechanical standards. We provide not only high-performance products rivaling top global brands but also professional technical support from our engineering team for selection and diagnostics. With rapid-response delivery and a No MOQ policy, TFL is dedicated to helping global industrial clients eliminate downtime hazards during urgent maintenance, achieving significant cost savings.
Heavy-Duty 63 Series Design — 110 x 240 x 50 mm, built to withstand massive radial and shock loads.
C4 Radial Internal Clearance — Essential for environments with extreme temperature gradients and massive heat transfer.
Thermally Stable Dielectric Layer — Maintains 50–200 MΩ resistance firmly, even at high industrial temperatures.
TFL 6322M/C4VL0241 is explicitly designed for purgatory-level industrial conditions featuring “ultra-heavy loads, extreme temperatures, severe vibrations, and complex electrical interference” simultaneously. Typical applications encompass main drives for hot strip mills in steel plants, high-temperature dryer motors in paper machinery, large mining crushers, and MW-class marine electric propulsors. It is a critical safeguard for heavy-asset enterprises to prevent unplanned downtime of core equipment under harsh thermodynamic conditions.
In VFD main drive motors (like MW-class units manufactured by Siemens and ABB) for hot and cold rolling lines in steel plants, equipment is constantly subjected to immense mechanical shocks from billet gripping and high radiant heat. The robust brass cage of TFL 6322M/C4VL0241 effectively resists impacts, while the C4 extra-large clearance safely accommodates internal expansion caused by heat surges. Its stable ceramic insulation avoids “arcing” erosion from parasitic currents, acting as a standard solution for the long-term operation of metallurgical equipment.
In the dryer sections of large paper machines by Valmet and Voith, drive motors operate year-round in extremely high-temperature steam environments. Bearings with standard clearance are highly prone to seizure due to thermal expansion. TFL 6322M/C4VL0241’s C4 extra-large clearance perfectly absorbs the intense thermal stress conducted through the shaft. Additionally, its 3000V outer-ring insulation entirely resolves inverter-induced electrical erosion, making it the top choice for equipment overhauls in high-heat zones of paper mills.
In the main drive systems of large mining jaw or cone crushers by Metso, the motor not only endures the crushing reaction forces of hundreds of tons of material but is also controlled by high-power, high-voltage VFDs. TFL 6322M/C4VL0241’s 63 series heavy-duty cross-section (240mm OD) provides unmatched radial support. The C4 clearance prevents temperature-induced seizures during continuous heavy-load operations, while the VL0241 coating cuts off the discharge loop, ensuring reliable heavy equipment operation in the mines.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
