Plasma Spray Technology: Creates a coating with excellent wear and heat resistance.
Reliable Quality: Compliant with ISO 9001 and REACH standards. The production process is fully traceable.
Flexible MOQ: Low Minimum Order Quantity (MOQ). Supports both small-batch and large-volume orders.
Ample Stock: A stable supply chain and sufficient inventory enable us to fulfill most orders.

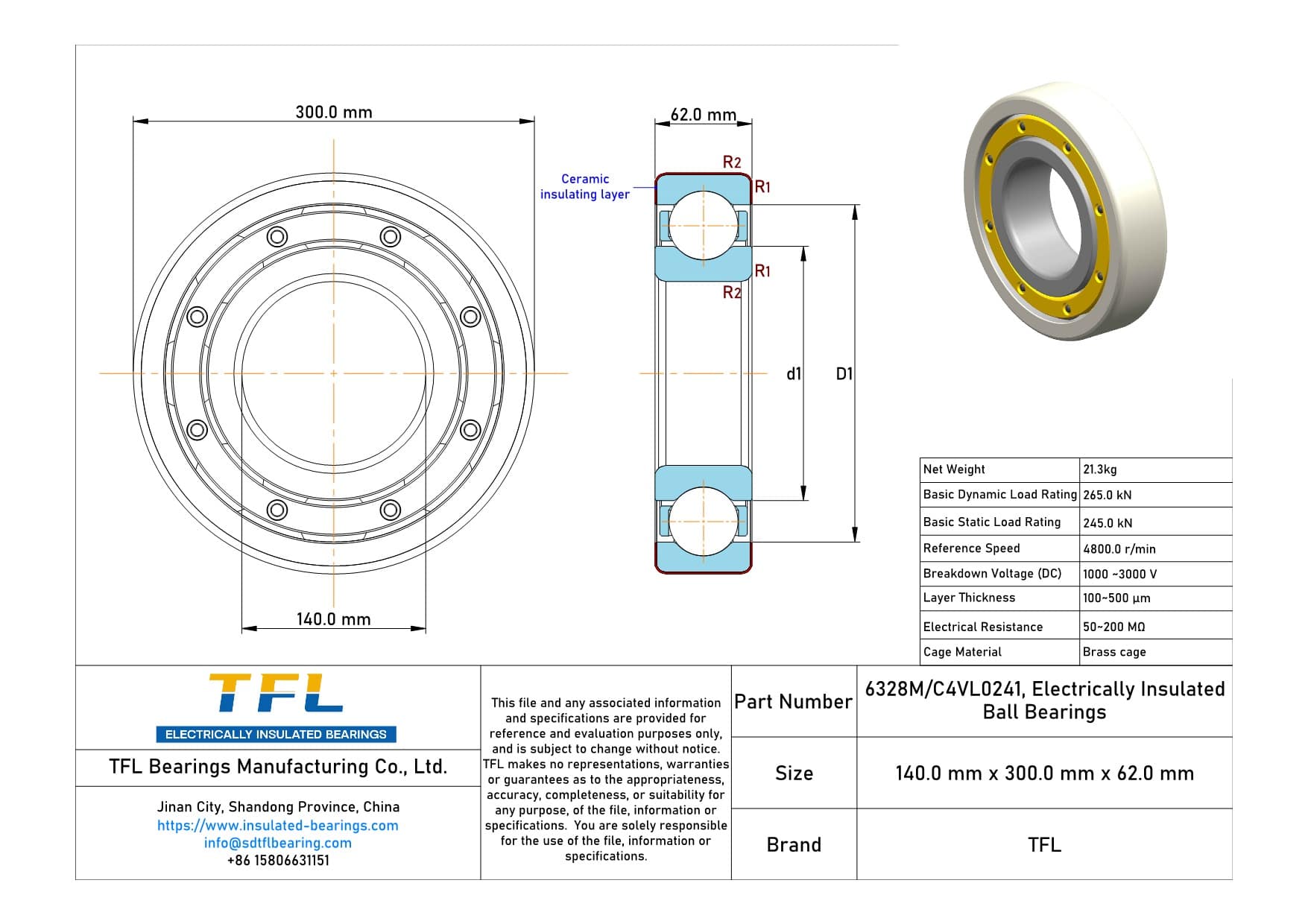

TFL 6328M/C4VL0241 is a 100% equivalent and direct replacement for large-size heavy-duty insulated bearings from SKF/FAG/NTN in terms of mechanical dimensions (140x300x62mm), solid brass cage design (M), C4 clearance, and VL0241 parameters. During equipment overhauls or VFD upgrades, customers do not need to perform any secondary machining of the shaft journal or housing bore to achieve seamless plug-and-play installation. All delivered products pass rigorous dielectric strength and dimensional precision checks.
| SKF | FAG | NTN |
|---|---|---|
| 6328M/C4VL0241 | 6328-M-J20AA-C4 | 7MC3-6328C3 |
Meeting the extreme industrial demand that overlays a “140mm large size, solid brass cage, C4 extra-large clearance, and outer-ring insulation coating” relies on a premium supply chain. Relying on a robust premium power transmission supply chain network and a strict quality control system, TFL provides high-quality products that deeply integrate advanced coating processes with precision mechanical standards. We not only provide high-reliability anti-erosion solutions rivaling top global brands but also offer professional technical support from our engineering team for selection and diagnostics. With rapid-response stock scheduling and No MOQ, TFL is dedicated to helping global clients eliminate lead-time risks on large specialized parts, achieving significant cost optimization.
Heavy-Duty 63 Series Design — Dimensions 140 x 300 x 62 mm, built to withstand brutal radial and shock loads.
C4 Extra-Large Clearance — Absolutely critical for surviving extreme temperature gradients and massive heat transfer.

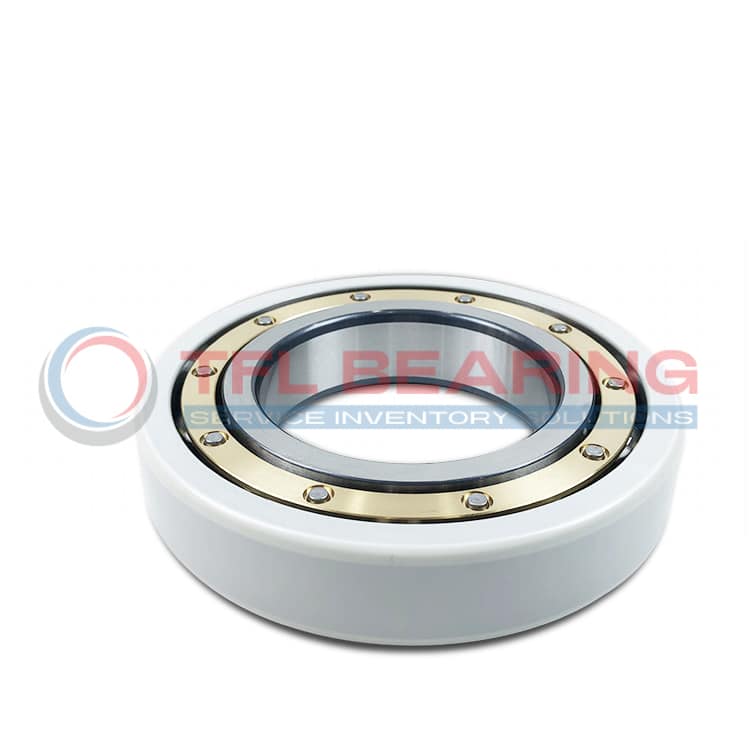

Machined Brass Cage (M) — Provides extreme resistance to heavy vibration and ensures structural integrity under shock.
TFL 6328M/C4VL0241 is exclusively tailor-made for purgatory-level industrial conditions featuring “ultra-heavy loads, extreme operating temperatures, severe vibrations, and complex high-frequency VFD interference” simultaneously. Typical applications encompass main VFD motors for large rotary kilns and heavy crushers in cement and mining, main drives for metallurgy hot strip rolling lines, and dryer drive motors in high-temperature paper machinery. Its robust brass cage grants the system superior vibration and impact toughness, the C4 extra-large clearance safely counteracts thermal expansion under extreme temperatures, and the outer-ring alumina coating perfectly cuts off high-frequency shaft voltages within standard housing seats to protect raceways.
In hot and cold rolling production lines at steel plants, MW-class VFD main drive motors manufactured by Siemens or ABB are constantly exposed to high radiant temperatures and immense mechanical impacts when billets are gripped. The 300mm massive cross-section and robust brass cage of TFL 6328M/C4VL0241 effectively resist extreme impacts, while the C4 extra-large clearance safely accommodates internal expansion caused by heat surges. Its stable ceramic insulation prevents “arcing” erosion on the bearing raceways by parasitic currents, acting as a standard solution for the long-term operation of metallurgical equipment.
In the main drive systems of large cement rotary kilns and heavy crushers by FLSmidth or Metso, the main motor endures feedback shocks from hundreds of tons of material alongside extreme heat conducted from the kiln body. TFL 6328M/C4VL0241’s 63 series ultra-heavy-duty structure provides unmatched radial support. The C4 clearance prevents seizure caused by continuous high-temp operations under heavy loads, and its insulated ceramic layer cuts off the discharge loop triggered by high-voltage VFD controls, ensuring the safe and continuous operation of heavy mining and cement equipment under extremely harsh conditions.
In the dryer sections of ultra-large paper machines by Valmet and Voith, giant drive motors operate year-round in extremely high-temperature steam environments. Using standard-clearance large bearings often leads to seizure as thermal expansion depletes the internal clearance. TFL 6328M/C4VL0241’s C4 extra-large clearance perfectly absorbs intense thermal stress conducted through the shaft, while the brass cage resists continuous vibration from the heavy-duty rolls. Concurrently, its 3000V outer-ring insulation entirely resolves inverter-induced electrical erosion, making it the top choice for motor overhauls in high-heat zones of paper mills.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
