Electrical Protection: Breakdown voltage up to 3000V. Blocks stray currents to prevent electrical corrosion.
Ample Stock: A stable supply chain and sufficient inventory enable us to fulfill most orders.
Flexible Order Quantity: Supports trial orders, repair batches, distributor orders, and volume purchasing.
Reliable Quality: Compliant with ISO 9001 and REACH standards. The production process is fully traceable.

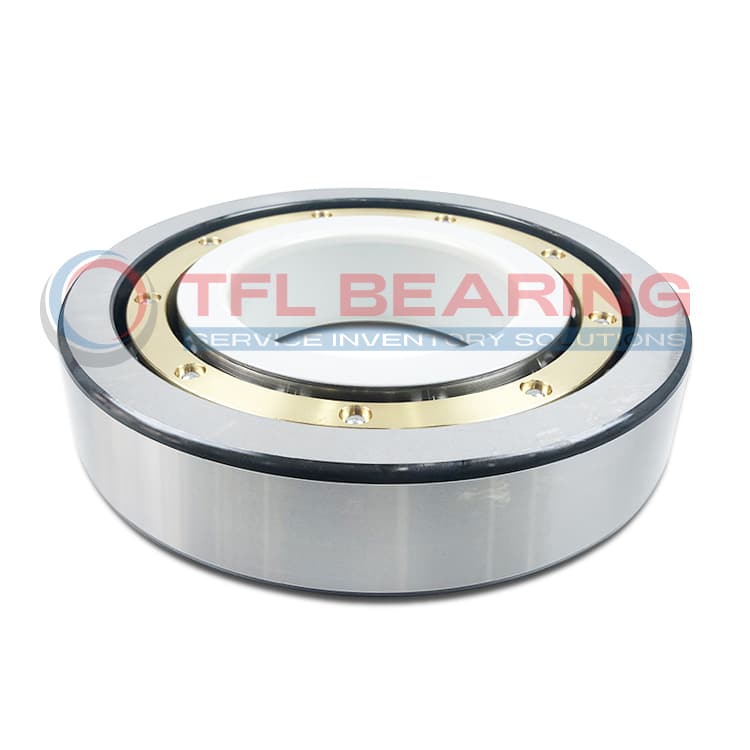

TFL 6334M/C3VL2071 has an interchange basis with corresponding SKF and FAG electrically insulated bearings through its 170 × 360 × 72 mm dimensions, C3 clearance, and inner-ring insulation structure. Unlike VL0241 outer-ring insulation, VL2071 places the insulation coating on the inner ring, so replacement should not be determined only from the same base designation. Buyers should verify the complete suffix, insulation location, clearance, cage, mounting fits, and operating conditions. TFL can assist with SKF/FAG interchange list and direct replacement review based on the original bearing designation, photos, and equipment information.
| SKF | FAG |
|---|---|
| 6334M/C3VL2071 | 6334-M-J20C-C3 |
TFL supports industrial buyers, motor repair teams, and distributors with insulated bearing model verification, interchange confirmation, and pre-shipment inspection. For large inner-ring insulated bearings such as 6334M/C3VL2071, we focus on the 170 × 360 × 72 mm dimensions, C3 clearance, VL2071 insulation location, brass cage, and complete original brand suffix. TFL supports No MOQ, small maintenance orders, volume purchasing, OEM/ODM, and consolidated shipments, helping customers control purchasing costs and inventory pressure when replacing SKF, FAG, and other branded bearings. The listed ROHS and REACH status is Compliant; specific document requirements can be confirmed at the RFQ or order stage.
Inner-ring insulation VL2071 — alumina ceramic insulation coating applied to the inner ring.
Brass cage — suitable for large industrial motor, generator, and heavy-duty electric drive applications.
Dielectric performance — 1000–3000 V DC breakdown voltage, 100–500 μm coating thickness, and 50–200 MΩ electrical resistance.
TFL 6334M/C3VL2071 electrically insulated deep groove ball bearing is mainly suitable for large inverter motors, industrial generators, wind turbine generators, and other large electric drive equipment where shaft current is a concern. Its VL2071 inner-ring insulation isolates the shaft-side current path and can help reduce electrical erosion and raceway damage caused by current passing through the bearing. The 170 × 360 × 72 mm dimensions, C3 clearance, brass cage, and 325 kN dynamic load rating suit continuous-duty conditions in large equipment. Final selection should confirm the required insulation location and verify dimensions, clearance, fits, load, speed, and temperature rise against the original bearing.
TFL electrically insulated deep groove ball bearings such as 6334M/C3VL2071 can be considered for large inverter motor equipment types, including Siemens 1LE0001 and ABB M3BP series. Inverter-driven operation can generate high-frequency voltage and shaft current, allowing the bearing to become part of the current path and increasing the risk of electrical erosion. With VL2071 inner-ring alumina ceramic insulation, 6334M/C3VL2071 can be considered as an alternative to comparable SKF or FAG insulated bearings where shaft-side insulation is required. This is an application-type reference, not an installed case.
TFL 6334M/C3VL2071 can be considered for bearing positions in large industrial motors, particularly equipment operating continuously where shaft current protection and inner-ring insulation are required. Large industrial motors operating with inverter drives or other electrical conditions may experience shaft voltage and circulating current, which can lead to electrical erosion, fluting, and lubricant degradation when current passes through the bearing. With VL2071 inner-ring alumina ceramic insulation, C3 clearance, and a brass cage, 6334M/C3VL2071 can be considered as an alternative to comparable SKF or FAG electrically insulated bearings. This is an application-type reference, not an installed case.
TFL electrically insulated bearings such as 6334M/C3VL2071 can be considered for generator bearing positions in wind turbines, including equipment types from Vestas, Goldwind, and Siemens Gamesa. Wind turbine generators operate under variable speed, vibration, humidity, and fluctuating load conditions, making shaft-current protection an important consideration for generator bearing selection. The VL2071 inner-ring insulation of 6334M/C3VL2071 can be considered for wind turbine generator bearing replacement review, but the original equipment must first be confirmed to require inner-ring rather than VL0241 outer-ring insulation. This is an application-type reference, not an installed case.
*The brands and series mentioned are provided for industry illustration only. Final bearing selection should be confirmed through verification of dimensions, clearance class, insulation type, and operating conditions. For selection assistance or technical consultation, please contact the TFL engineering team for support.
