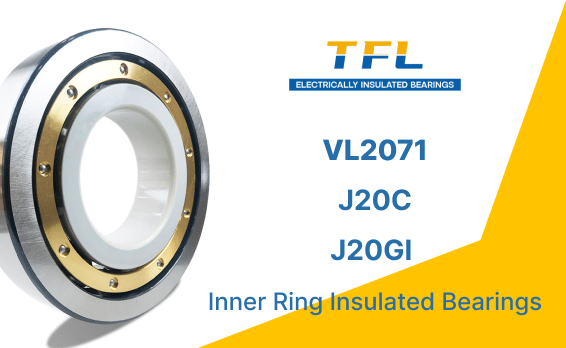

VL2071, J20C and J20GI are designation suffixes associated with inner ring insulated bearings. VL2071 is commonly used for SKF inner-ring-coated bearings. J20C and J20GI appear in Schaeffler/FAG insulated bearing designations.
These suffixes describe the insulation configuration. They do not make two complete bearing models automatically interchangeable.
Before buying a replacement, confirm the complete bearing number, boundary dimensions, internal clearance, cage, seals and required insulation position. Buyers should also confirm availability, MOQ, lead time and required inspection documents.
VL2071, J20C and J20GI at a Glance
These codes help identify where the electrical insulation coating is applied.
They are only one part of the complete bearing designation.
| Suffix | Common Brand Association | Insulation Position | What Buyers Should Check |
|---|---|---|---|
| VL2071 | SKF | Inner ring external surfaces | Complete SKF designation, clearance, cage and dimensions |
| J20C | Schaeffler/FAG | Inner ring ceramic coating | Original J20C model and complete suffix combination |
| J20GI | Schaeffler/FAG J20G system | Inner ring coating | Current coating specification and complete ordering code |
| VL0241 | SKF | Outer ring external surfaces | Do not substitute it for VL2071 without checking the application |
A buyer should not order only by the insulation suffix.
For example, VL2071 identifies the insulation configuration. It does not tell the supplier the bearing size, clearance or cage.
What Is a VL2071 Bearing?
VL2071 is an SKF designation suffix for an electrically insulated bearing with the coating applied to the external surfaces of the inner ring.
The coating may cover the bore, chamfers and relevant side faces of the inner ring. This helps interrupt the electrical current path between the shaft and the bearing.
VL2071 is not a complete bearing number.
It normally appears after the basic model and other bearing suffixes.
| Designation Part | Example | Meaning |
|---|---|---|
| Basic bearing number | 6332 | Identifies the bearing series and dimensions |
| Cage suffix | M | Machined brass cage |
| Internal clearance | C3 | Radial clearance greater than normal |
| Insulation suffix | VL2071 | Insulating coating applied to the inner ring |
The resulting complete model is:
6332M/C3VL2071
A request for “6332 bearing” is not enough to confirm this product.
The supplier must know whether the required bearing uses a brass cage, C3 clearance and inner ring insulation.
What Is a J20C Bearing?
J20C is a Schaeffler/FAG suffix associated with an inner-ring ceramic-coated current-insulated bearing.
This suffix can appear on existing bearings, maintenance records, equipment bills of materials and distributor listings.
Examples include:
- 6230-J20C-C3
- 6324-J20C-C3
- 6330-M-J20C-C3
- 6332-M-J20C-C4
The position of each suffix may differ from SKF designation formatting.
However, the same purchasing rule applies. The buyer must retain the complete designation.
| Request | Is It Sufficient? | Missing Information |
|---|---|---|
| 6332 bearing | No | Cage, clearance and insulation position |
| 6332-M-J20C-C3 | Much better | Application conditions and documentation may still need checking |
If the old bearing carries a J20C suffix, send a clear photograph of the complete marking.
Do not remove the suffix when requesting a replacement quote.
What Is a J20GI Bearing?
J20GI identifies the inner-ring-coated option in Schaeffler’s newer J20G current-insulation system.
Schaeffler uses J20GA and J20GB for outer-ring coating options. J20GI is the corresponding inner-ring option.
A complete designation may look like:
6330-M-J20GI-C4
This model information includes:
- 6330 basic bearing number
- M brass cage
- J20GI inner ring insulation
- C4 radial internal clearance
J20C and J20GI can both appear in product searches, maintenance records and replacement inquiries.
However, buyers should not assume that J20GI is an automatic one-to-one replacement for every J20C bearing.
The complete technical specification must still be compared.
Are VL2071, J20C and J20GI Equivalent?
VL2071, J20C and J20GI describe similar inner ring insulation concepts, but they are not automatically equivalent as complete bearing designations.
The insulation location may match.
The rest of the bearing may not.
What May Be Similar
- Inner ring insulation position
- Basic bearing dimensions
- Deep groove ball bearing or cylindrical roller bearing design
- Electrical current isolation function
- Use in motor or generator bearing positions
What Must Still Be Verified
| Item | Example | Why It Matters |
|---|---|---|
| Basic bearing number | 6330, 6332 or NU322 | Confirms dimensions and bearing type |
| Boundary dimensions | 160 × 340 × 68 mm | Must match the shaft and housing |
| Internal clearance | C3 or C4 | Affects operating clearance and temperature allowance |
| Cage | Stamped steel or machined brass | May affect speed, load and application suitability |
| Seals or shields | Open, 2Z or 2RS | Changes lubrication and contamination protection |
| Insulation location | Inner ring | Must match the required electrical current path |
| Coating specification | Voltage, resistance and thickness | May differ between brands and product versions |
| Mounting arrangement | Shaft shoulder and spacer contact | Metal components must not bypass the insulation |
| Required documents | Inspection or insulation test report | May be required for project approval |
Direct Replacement or Replacement Candidate?
A direct replacement should match all important mechanical and insulation requirements.
This normally includes dimensions, clearance, cage, bearing design and insulation specification.
A replacement candidate has a similar size and functional direction, but still requires technical confirmation.
For industrial purchasing, it is safer to use terms such as:
- Replacement candidate
- Interchange option
- Alternative for technical review
- Dimensionally compatible option
A supplier should not confirm interchangeability from the basic bearing number alone.
VL2071 vs. VL0241: Do Not Confuse the Coating Position
VL2071 uses inner ring insulation. VL0241 uses outer ring insulation.
Both are electrically insulated bearing configurations.
They interrupt the current path at different mounting interfaces.
| Feature | VL2071 | VL0241 |
|---|---|---|
| Coating position | Inner ring | Outer ring |
| Common market availability | More limited | More widely stocked |
| Typical purchasing situation | Specified replacement or higher-impedance requirement | Common motor insulation requirement |
| Can the same basic model be substituted directly? | Not without checking the required insulation position | |
A 6332M/C3VL0241 and a 6332M/C3VL2071 may have the same basic dimensions.
They do not have the same coating location.
If the equipment specifies VL2071, do not change to VL0241 only because the outer-ring-coated version is easier to find.
First confirm the motor design, current path and original OEM requirement.
When Is an Inner Ring Insulated Bearing Usually Requested?
The Existing Bearing Already Uses VL2071 or J20C
This is the most direct buying situation.
The maintenance team already has a complete original bearing number. It needs the same configuration or a technically verified alternative.
The Motor Specification Requires Inner Ring Insulation
Some motor, generator or traction applications specify the insulation position.
In this case, an outer-ring-coated bearing should not be used without an engineering review.
The Original Brand Has a Long Lead Time
Large VL2071 and J20C bearings may not be available from local distributor stock.
The buyer may need an alternative-brand product with matching dimensions, clearance, cage and insulation location.
Only a Small Maintenance Quantity Is Needed
A motor repair shop may need one or two bearings.
Some supply channels focus on full production batches. This can make small maintenance orders difficult to place.
A Large Motor Uses C3 or C4 Clearance and a Brass Cage
Inner ring insulated bearings often appear in large bearing sizes with specific suffix combinations.
The buyer must match the complete configuration, not only the insulation code.
Why Are Inner Ring Insulated Bearings Harder to Source?
Inner ring insulated bearings are less widely stocked than common outer ring insulated bearings.
This does not mean that the design is obsolete.
It means the demand is more concentrated.
Outer Ring Insulation Covers More Standard Motor Demand
Outer-ring-coated bearings are widely used in conventional motor and generator applications.
Distributors can sell these models to a larger customer base.
They are therefore more likely to keep VL0241-style products in stock.
Inner Ring Insulation Is More Application-Specific
VL2071, J20C and J20GI bearings are often ordered for a specific motor design or replacement requirement.
The customer normally needs an exact combination of size, clearance and cage.
Each Suffix Combination Creates a Separate Stock Item
Consider the difference between these two models:
- 6332M/C3VL2071
- 6332M/C4VL2071
The dimensions and insulation position are the same.
The radial internal clearance is different.
A supplier cannot treat them as the same inventory item.
Large Sizes Increase Inventory Cost
Many inner ring insulated bearings are large and relatively expensive.
Holding every possible size and suffix combination creates slow-moving inventory.
Many distributors therefore source these bearings only after receiving an order.
Small Orders May Not Meet Production MOQ
A plant may need only one bearing for a shutdown repair.
A production source may prefer a larger batch.
This creates a gap between maintenance demand and normal factory order quantities.
A supplier with low-MOQ support and multiple sourcing options can provide meaningful value in this situation.
Common VL2071 and J20C Bearing Models
The following table shows examples of inner ring insulated bearing designations commonly used in cross-reference searches.
It is a starting point only. Final interchange must be verified from the complete specification.
| Basic Model | SKF-Style Designation | FAG-Style Search | Configuration |
|---|---|---|---|
| 6034 | 6034/C3VL2071 | 6034-J20C-C3 | Inner ring insulation, C3 clearance |
| 6324 | 6324M/C3VL2071 | 6324-M-J20C-C3 | Brass cage, C3 clearance |
| 6326 | 6326M/C3VL2071 | 6326-M-J20C-C3 | Brass cage, C3 clearance |
| 6330 | 6330M/C3VL2071 | 6330-M-J20C-C3 | Brass cage, C3 clearance |
| 6330 | 6330M/C4VL2071 | 6330-M-J20C-C4 | Brass cage, C4 clearance |
| 6332 | 6332M/C3VL2071 | 6332-M-J20C-C3 | Brass cage, C3 clearance |
| 6332 | 6332M/C4VL2071 | 6332-M-J20C-C4 | Brass cage, C4 clearance |
| 6334 | 6334M/C3VL2071 | 6334-M-J20C-C3 | Brass cage, C3 clearance |
| 6334 | 6334M/C4VL2071 | 6334-M-J20C-C4 | Brass cage, C4 clearance |
| 6236 | 6236M/C3VL2071 | 6236-M-J20C-C3 | Brass cage, C3 clearance |
Formatting can differ between brands and catalogs.
Always compare the full technical data rather than relying only on how the suffix is written.
How to Buy the Correct VL2071 or J20C Replacement
1. Send the Complete Existing Bearing Number
Do not send only the basic model.
Instead of:
6332 bearing
Send:
6332M/C3VL2071
A photograph of the old bearing marking is also useful.
2. Confirm the Required Quantity
State whether the request is for:
- One maintenance spare
- A sample order
- A small repair batch
- A distributor order
- A recurring production requirement
Quantity affects stock options, MOQ, production planning and price.
3. Confirm C3 or C4 Clearance
C3 and C4 are not interchangeable labels.
C4 provides more radial internal clearance than C3.
The correct selection depends on the original equipment specification, fit and operating temperature.
4. Confirm the Cage
The letter M commonly indicates a machined brass cage.
A model without the M suffix may use a stamped steel cage.
Do not assume that two bearings with the same dimensions have the same cage.
5. Confirm the Insulation Position
State clearly whether the project requires:
- Inner ring insulation
- Outer ring insulation
- The same insulation location as the original bearing
- An engineering review of both options
6. State the Required Insulation Specification
Provide any project requirements for:
- Dielectric strength
- Electrical resistance
- Coating thickness
- Humidity resistance
- Inspection method
- Batch test records
Do not assume that every VL2071-style replacement uses the same coating specification.
7. Confirm Required Documents
Documents may include:
- Dimensional inspection report
- Insulation test report
- Certificate of conformity
- Material or batch information
- RoHS or REACH status
- Packaging and label confirmation
Request these documents before ordering.
8. State the Required Delivery Date
Do not ask only whether the product is available.
Provide the target delivery date and destination country.
This helps the supplier check stock, production and shipping options together.
Common Buying Mistakes
Ordering Only by the Basic Number
A 6332 bearing may be available in several clearance, cage and insulation configurations.
The basic number alone cannot identify the correct product.
Treating All Insulated Bearings as the Same
VL2071 and VL0241 use different insulation positions.
The same dimensions do not make them the same product.
Ignoring C3 or C4 Clearance
Clearance affects the operating condition of the bearing after mounting and temperature rise.
Do not change it only because another version is available sooner.
Ignoring the Cage Suffix
A brass cage and a stamped steel cage may be used in different operating conditions.
Check the complete original designation.
Assuming J20C and J20GI Are Automatically Identical
Both are associated with inner ring insulation.
However, the coating system and current product specification still require confirmation.
Accepting an Equivalent Without Technical Details
A supplier should explain what has been matched.
This should include dimensions, clearance, cage and insulation location.
Any unconfirmed item should be stated before the order is placed.
TFL Inner Ring Insulated Bearing Options
Inner ring insulated bearings are less widely available than common outer ring insulated bearings, but TFL supplies selected VL2071-style models and reviews J20C or J20GI replacement requirements.
TFL supports industrial buyers, motor repair teams, distributors and maintenance departments.
Available support may include:
- Deep groove ball bearings with inner ring insulation
- Selected cylindrical roller bearing requirements
- C3 and C4 clearance options
- Stamped steel and machined brass cage configurations
- SKF VL2071 replacement review
- FAG J20C and J20GI interchange review
- Low-MOQ and small maintenance orders for selected models
- Multi-model RFQ consolidation
- Inspection and insulation documents upon request
Availability depends on the complete designation, quantity and document requirements.
Not every listed size is continuously available from stock. Current availability should be confirmed before ordering.
Recommended TFL Inner Ring Insulated Bearings
| TFL Model | Dimensions | Clearance | Cage | Product Page |
|---|---|---|---|---|
| 6034/C3VL2071 | 170 × 260 × 42 mm | C3 | Stamped steel | View Product |
| 6324M/C3VL2071 | 120 × 260 × 55 mm | C3 | Machined brass | View Product |
| 6326M/C3VL2071 | 130 × 280 × 58 mm | C3 | Machined brass | View Product |
| 6330M/C3VL2071 | 150 × 320 × 65 mm | C3 | Machined brass | View Product |
| 6330M/C4VL2071 | 150 × 320 × 65 mm | C4 | Machined brass | View Product |
| 6332M/C3VL2071 | 160 × 340 × 68 mm | C3 | Machined brass | View Product |
| 6332M/C4VL2071 | 160 × 340 × 68 mm | C4 | Machined brass | View Product |
| 6334M/C3VL2071 | 170 × 360 × 72 mm | C3 | Machined brass | View Product |
| 6334M/C4VL2071 | 170 × 360 × 72 mm | C4 | Machined brass | View Product |
| 6236M/C3VL2071 | 180 × 320 × 52 mm | C3 | Machined brass | View Product |
Additional inner ring insulated models can be checked through the TFL product range and cross-reference resources:
- Electrically Insulated Deep Groove Ball Bearings
- Insulated Deep Groove Ball Bearing Cross Reference
- TFL Insulated Bearing Size Chart
What to Include in Your RFQ
Use the following information when requesting a VL2071, J20C or J20GI bearing quotation:
Existing bearing number:
Original bearing brand:
Required quantity:
Motor or equipment type:
Required internal clearance:
Required cage:
Required insulation position:
Required voltage or insulation specification:
Required inspection documents:
Target delivery date:
Destination country:
Attach a clear photograph of the old bearing marking when possible.
A motor nameplate, drawing or equipment BOM can also help reduce cross-reference errors.
Frequently Asked Questions
What does VL2071 mean on a bearing?
VL2071 is commonly used as an SKF suffix for a bearing with an insulating coating applied to the external surfaces of the inner ring. It must be read together with the basic bearing number, clearance and cage suffixes.
Is J20C an inner ring insulated bearing?
Yes. Schaeffler/FAG product listings associate J20C with current insulation and an inner-ring ceramic coating. The complete J20C bearing number should still be checked before replacement.
Is J20C equivalent to SKF VL2071?
They describe a similar inner ring insulation location. However, they should not be treated as automatically interchangeable. Dimensions, clearance, cage and coating requirements must be verified.
What is the difference between J20C and J20GI?
Both suffixes are associated with inner ring insulation. J20GI is the inner-ring option within Schaeffler’s newer J20G coating system. J20C continues to appear in existing bearings and product listings. Do not substitute one for the other without checking the complete specification.
Can VL0241 replace VL2071?
Not automatically. VL0241 applies insulation to the outer ring, while VL2071 applies it to the inner ring. The required insulation position should be confirmed from the original motor or bearing specification.
Can another brand replace an SKF VL2071 bearing?
An alternative brand can be considered when the boundary dimensions, internal clearance, cage, insulation location and required coating performance are matched. Final approval should be based on the complete application requirement.
Are low-MOQ VL2071 bearings available?
TFL supports low-MOQ and small maintenance inquiries for selected inner ring insulated bearing models. MOQ and availability depend on the complete model, quantity and required documents.
What information is needed for a VL2071 quotation?
Provide the complete existing bearing number, original brand, quantity, clearance, cage, insulation requirement, delivery date and destination. Include photographs or drawings when available.
Can TFL provide an insulation test report?
Inspection and insulation documentation can be reviewed according to the model and order requirements. State the required test items and acceptance criteria at the RFQ stage.
How long does a J20C replacement bearing take to supply?
Lead time depends on stock, production requirements, order quantity and documentation. Submit the complete J20C designation to receive a model-specific availability check.
Summary
VL2071, J20C and J20GI are important search and purchasing codes for inner ring insulated bearings.
They help identify the insulation position. They do not replace the full bearing designation.
Before ordering, confirm the basic model, dimensions, clearance, cage and insulation specification.
Inner ring insulated bearings are less widely stocked than common outer ring insulated bearings. This can make large sizes, C4 versions, brass-cage models and small maintenance quantities difficult to source.
TFL supplies selected VL2071-style inner ring insulated bearings and can review J20C or J20GI replacement requirements based on the complete original designation.
Cannot Find the Required VL2071 or J20C Bearing?
Send TFL the complete bearing number, required quantity, application and target delivery date.
We will review the dimensions, internal clearance, cage and insulation requirements before recommending an available product or replacement candidate.
Request a Replacement Review View Inner Ring Insulated Bearings
Technical References
The brand suffix descriptions in this guide are based on SKF and Schaeffler product information. Brand names and designation codes are used for identification and cross-reference purposes only.
